TSA1203IFT - STMicroelectronics

Description: Dual-channel 12-bit 40Msps 215mW A/D converter

Download TSA1203IFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

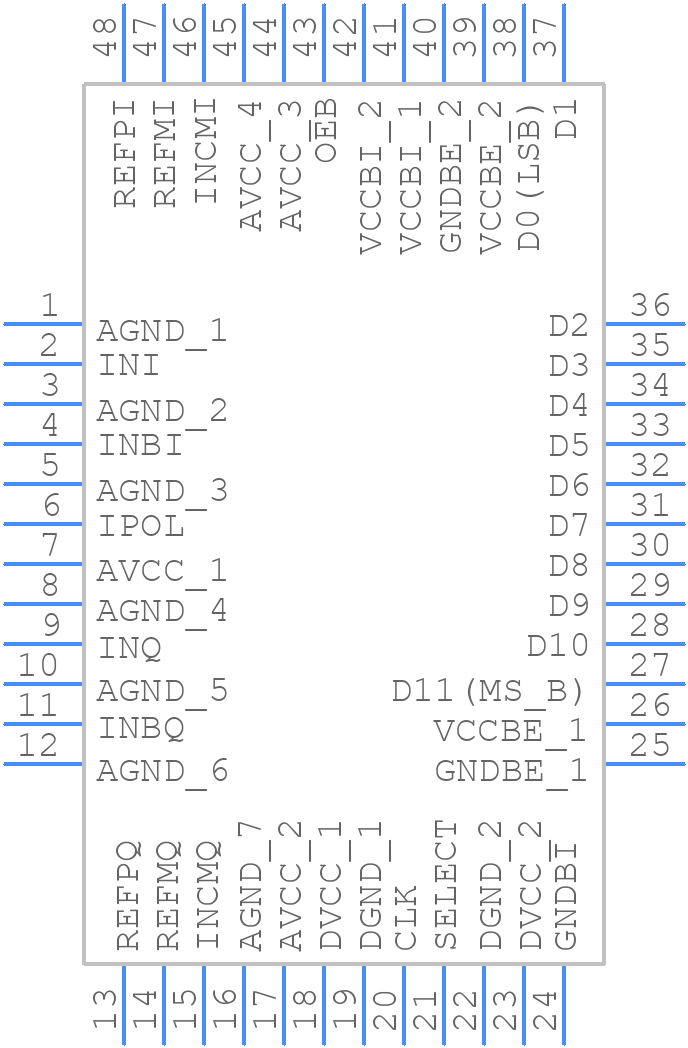

TSA1203IFT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSA1203IFT - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP48
click to zoom
3D Models
TSA1203IFT - STMicroelectronics - 3D model - Quad Flat Packages - TQFP48
click to zoom

TSA1203IFT Details

  • Manufacturer Part Number:

    TSA1203IFT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, TQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.8 V

  • Analog Input Voltage-Min:

    1.1 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    96.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

TSA1203IFT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TSA1203IFT datasheet provides a list of recommended external components, including resistors, capacitors, and inductors. The selection of these components depends on the specific application and operating conditions. STMicroelectronics also provides a component selection guide in the application note AN2863.
  • The TSA1203IFT is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and power dissipation. It's essential to consult the datasheet and application notes for specific guidance on thermal management and derating.
  • STMicroelectronics provides guidelines for EMC in the application note AN2863, including recommendations for PCB layout, component selection, and shielding. Additionally, the TSA1203IFT is designed to meet the requirements of various EMC standards, such as IEC 61000-4-2 and IEC 61000-4-4.
  • The typical start-up time for the TSA1203IFT is around 10 ms, but this can vary depending on the specific application and operating conditions. The start-up time can be affected by factors such as the input voltage, output voltage, and load current.
