FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receiver Number of Bits:
2
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
3.6 V
Supply Voltage1-Min:
3 V
Supply Voltage1-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TSB41AB1PHP Frequently Asked Questions (FAQs)
The TSB41AB1PHP supports cable lengths up to 4.5 meters (14.76 feet) at S400 speed, and up to 10 meters (32.8 feet) at S200 speed.
To ensure reliable operation in high-temperature environments, ensure that the device is properly heatsinked, and consider using thermal interface materials to improve heat transfer. Additionally, follow the recommended operating conditions and thermal design guidelines provided in the datasheet.
Follow the recommended PCB layout guidelines provided in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the IEEE 1394 signals. Additionally, ensure that the power and ground pins are properly decoupled.
To troubleshoot connectivity issues, check the cable connections, ensure that the device is properly powered, and verify that the IEEE 1394 bus is properly terminated. Use a logic analyzer or oscilloscope to verify the signal integrity and timing. Consult the datasheet and application notes for additional troubleshooting guidance.
The TSB41AB1PHP requires a specific power sequencing to ensure proper operation. The recommended power sequencing is to apply VCC first, followed by VCCP, and then VCCIO. Ensure that the power supplies are stable and within the recommended operating conditions before applying them to the device.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TSB41AB1PHP Overview

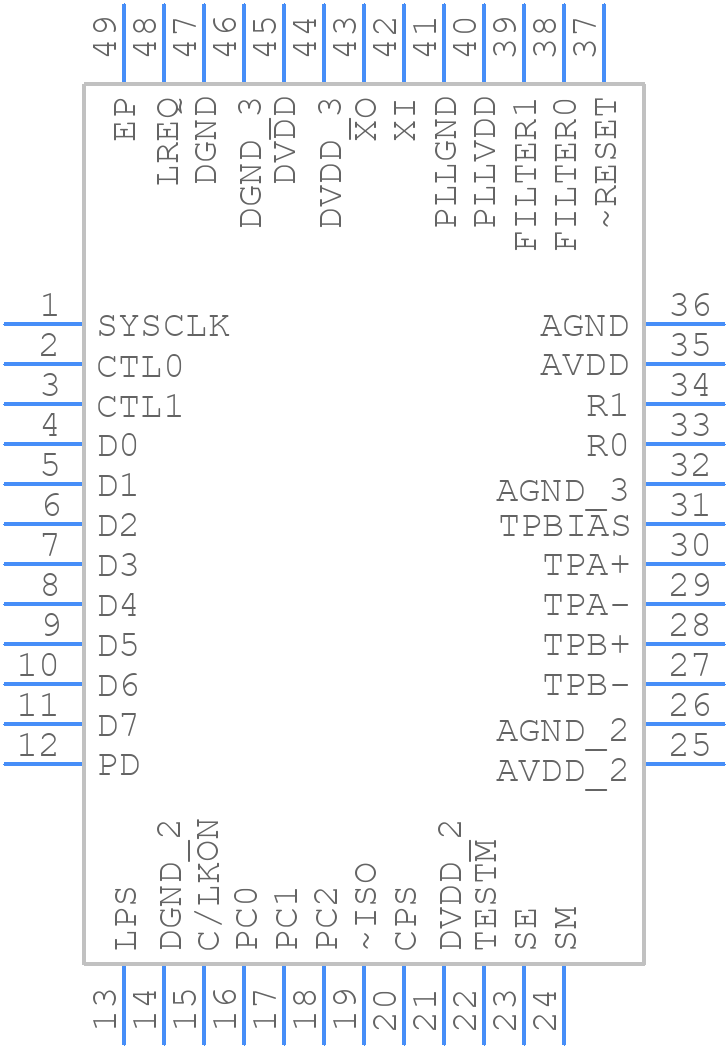

Use the download button to access the TSB41AB1PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSB41,
or try a keyword search, such as Line Driver or Receivers
