- Stock & Prices $ Price & Stock for TSB41BA3BPFP
- Part Number TSB41BA3BPFP
- Manufacturer Texas Instruments
- Pin Count 81
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P1400X1400X120-81N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TSB41BA3BPFP Details
-
Manufacturer Part Number:
TSB41BA3BPFP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFP
-
Package Description:
TQFP-80
-
Pin Count:
80
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
TSB41BA3BPFP Frequently Asked Questions (FAQs)
-
The TSB41BA3BPFP supports cable lengths up to 4.5 meters (14.76 feet) at S400 speed, and up to 10 meters (32.8 feet) at S200 speed.
-
To ensure reliable operation in high-temperature environments, it is recommended to use a heat sink and ensure good airflow around the device. Additionally, the device should be operated within the recommended operating temperature range of -40°C to 85°C.
-
The recommended PCB layout and routing for the TSB41BA3BPFP involves using a 4-layer PCB with a solid ground plane, and routing the differential pairs as close together as possible to minimize electromagnetic interference (EMI).
-
To troubleshoot issues with the TSB41BA3BPFP, it is recommended to use a logic analyzer or oscilloscope to monitor the signal waveforms and identify any errors or anomalies. Additionally, checking the device's power supply and clock signals can help identify any issues.
-
The recommended termination resistors for the TSB41BA3BPFP are 50-ohm resistors, which should be placed as close to the device as possible to minimize signal reflections.
Trust Checks
System Verified
TSB41BA3BPFP Overview

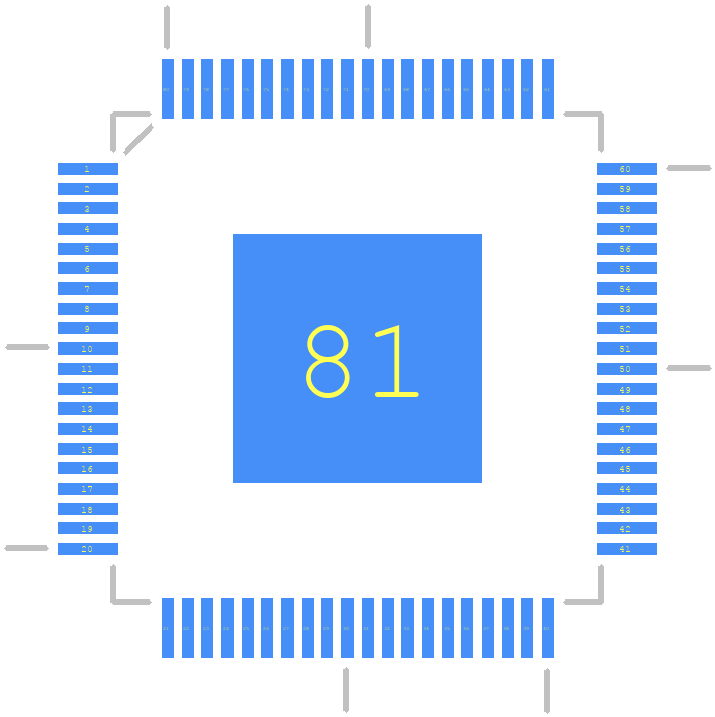

Use the download button to access the TSB41BA3BPFP schematic symbol, PCB footprint, and 3D model.
