FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
2 V
Supply Voltage-Min:
1.75 V
Supply Voltage-Nom:
1.85 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
12 mm
TSB41BA3FTPFPEP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device's thermal protection features, such as thermal shutdown and thermal warning, should be utilized to prevent overheating.
Operating the TSB41BA3FTPFPEP at a lower voltage than the recommended 3.3V may result in reduced performance, increased latency, and potential errors. Operating at a higher voltage may result in increased power consumption, heat generation, and reduced reliability. It is recommended to operate the device within the specified voltage range to ensure optimal performance and reliability.
To troubleshoot issues with the device's IEEE 1394 interface, it is recommended to use a logic analyzer or a protocol analyzer to capture and analyze the bus traffic. Additionally, checking the device's registers and status bits can provide valuable information about the device's operation and any potential errors. Texas Instruments also provides a troubleshooting guide in the application note SLUA272.
Using a different clock frequency than the recommended 49.152 MHz may result in reduced performance, increased jitter, and potential errors. The device's clock frequency affects the IEEE 1394 interface's data transfer rate, and using a non-standard frequency may result in compatibility issues with other devices on the bus.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSB41BA3FTPFPEP Overview

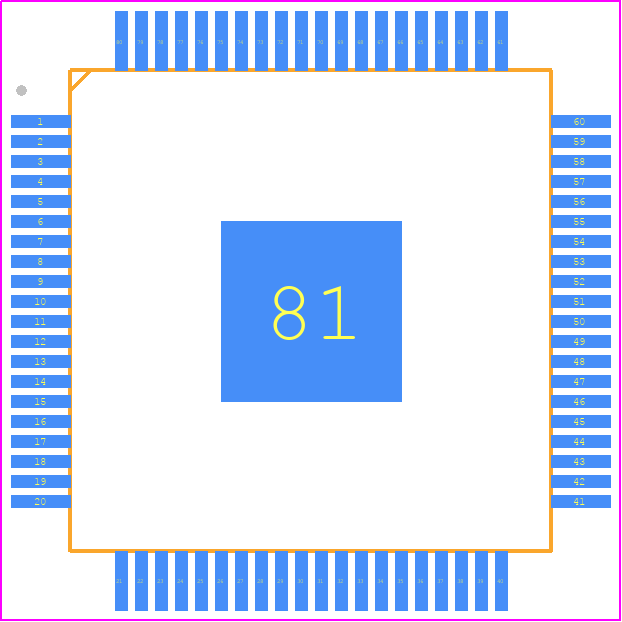

Use the download button to access the TSB41BA3FTPFPEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSB41,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
