FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receiver Number of Bits:
12
Seated Height-Max:
1.2 mm
Supply Current-Max:
450 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
3.6 V
Supply Voltage1-Min:
3 V
Supply Voltage1-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
TSB41LV06APZP Frequently Asked Questions (FAQs)
The maximum cable length supported by the TSB41LV06APZP is dependent on the specific IEEE 1394 application and the type of cable used. However, as a general guideline, the IEEE 1394 standard recommends a maximum cable length of 4.5 meters for S400 and S800 modes, and 1.8 meters for S1600 and S3200 modes.
To ensure reliable operation of the TSB41LV06APZP in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, such as providing adequate heat sinking, using thermal vias, and minimizing thermal resistance. Additionally, the device should be operated within its specified temperature range of -40°C to 85°C.
Texas Instruments provides a recommended PCB layout and routing guide for the TSB41LV06APZP in its application note SLZA012. The guide provides detailed recommendations for component placement, trace routing, and signal integrity to ensure reliable operation of the device.
To troubleshoot common issues with the TSB41LV06APZP, it is recommended to follow a systematic approach, such as checking the power supply, clock signals, and signal integrity. Additionally, using debug tools and software, such as logic analyzers and protocol analyzers, can help identify and isolate issues. Texas Instruments also provides a troubleshooting guide in its application note SLZA013.
When using the TSB41LV06APZP in a system with multiple IEEE 1394 devices, it is important to ensure that each device is properly configured and addressed, and that the system is designed to handle the increased bandwidth and complexity. Additionally, proper bus management and arbitration are critical to ensure reliable operation and prevent data corruption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSB41LV06APZP Overview

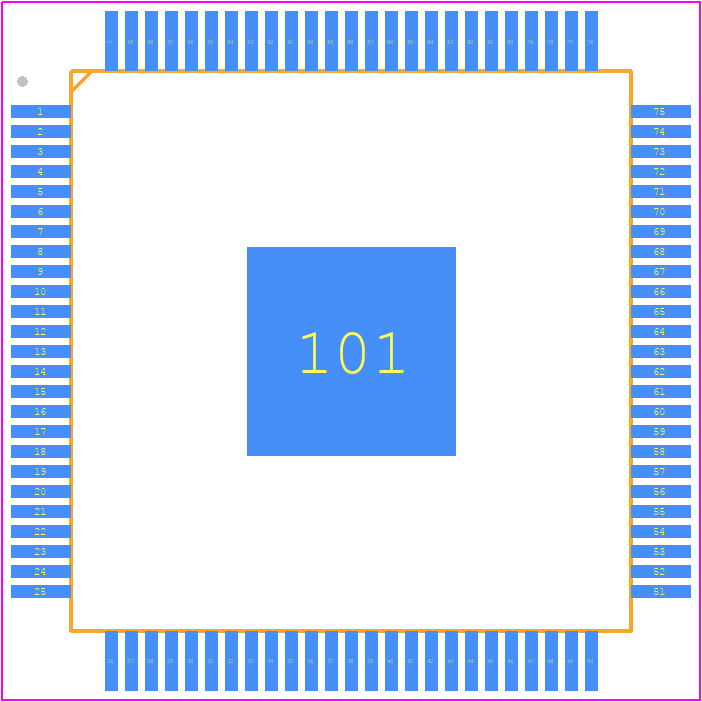

Use the download button to access the TSB41LV06APZP schematic symbol, PCB footprint, and 3D model.
