Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the IEEE 1394a standard for PCB layout guidelines. Additionally, using a 4-layer PCB with a solid ground plane and a separate power plane can help reduce noise and improve signal integrity.
The TSB43AB22APDTG4 is rated for operation up to 85°C, but to ensure reliable operation in high-temperature environments, it's recommended to follow proper thermal design practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
Using a lower-speed crystal oscillator can affect the device's performance, particularly in terms of jitter and skew. It's recommended to use a crystal oscillator with a frequency of at least 24.576 MHz to ensure optimal performance. If a lower-speed oscillator is used, the device's performance may be degraded, and it may not meet the IEEE 1394a standard requirements.
Troubleshooting issues with the LLC can be challenging, but some common techniques include using a logic analyzer to capture and analyze the LLC's signals, checking the device's register settings, and verifying that the LLC is properly configured and enabled. Texas Instruments also provides a range of development tools and software that can help with debugging and troubleshooting.
The TSB43AB22APDTG4 has specific power sequencing requirements to ensure proper operation. The recommended power-up sequence is to apply VCC first, followed by VCCPLL, and then VCCIO. The power-down sequence should be reversed. Failure to follow the recommended power sequencing can result in device damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSB43AB22APDTG4 Overview

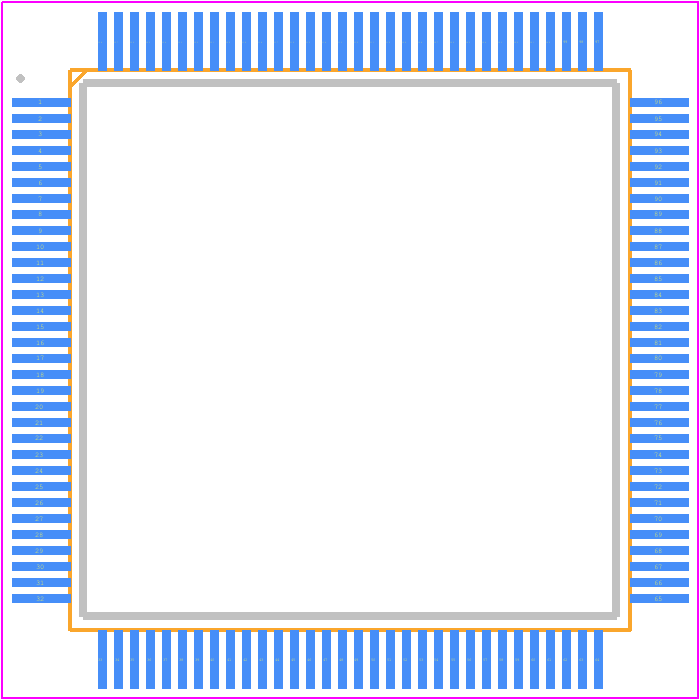

Use the download button to access the TSB43AB22APDTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSB43,
or try a keyword search, such as Serial IO/Communication Controllers
