The maximum cable length supported by the TSB43AB22PDT is dependent on the specific IEEE 1394 application and the type of cable used. However, as a general guideline, the maximum cable length is typically around 4.5 meters (15 feet) for S400 and S800 modes, and 1.8 meters (6 feet) for S1600 and S3200 modes.
To ensure reliable operation of the TSB43AB22PDT in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, such as providing adequate heat sinking, using thermal vias, and minimizing thermal resistance. Additionally, the device should be operated within its specified temperature range of -40°C to 85°C.
Texas Instruments provides a recommended PCB layout and routing guide for the TSB43AB22PDT in the device's datasheet and application notes. Key guidelines include using a solid ground plane, minimizing trace lengths and impedance, and using differential pair routing for the IEEE 1394 signals.
To troubleshoot common issues with the TSB43AB22PDT, it is recommended to follow a systematic approach, such as checking the power supply, clock signals, and IEEE 1394 signal integrity. Additionally, using debug tools and software, such as logic analyzers and protocol analyzers, can help identify and isolate issues.
The recommended power sequencing and reset strategies for the TSB43AB22PDT involve ensuring that the device is powered up and reset in a specific order, such as powering up the VCC and VCCIO supplies before the VCCPLL supply, and asserting the reset signal (RESETn) after the power supplies have stabilized.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSB43AB22PDT Overview

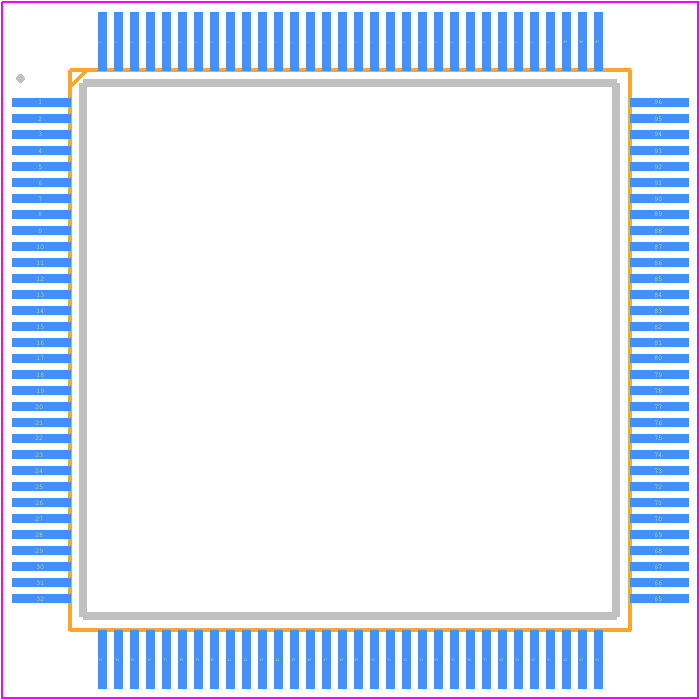

Use the download button to access the TSB43AB22PDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSB43,
or try a keyword search, such as Serial IO/Communication Controllers
