TSC2000IPW - Texas Instruments

Description: 4-wire Programmable Touch Screen Controller With 8/10/12-Bit 125-Khz ADC and SPI Interface

Download TSC2000IPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

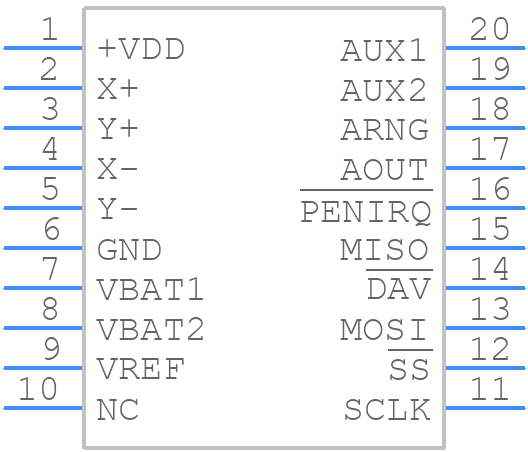

TSC2000IPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2000IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
TSC2000IPW - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

TSC2000IPW Details

  • Manufacturer Part Number:

    TSC2000IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLERS

TSC2000IPW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TSC2000IPW datasheet, which includes guidelines for component placement, routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, low noise, and high accuracy.
  • The TSC2000IPW requires a one-time calibration process to achieve the highest accuracy. This involves applying a known input voltage and measuring the output code. The calibration process is described in the datasheet, and Texas Instruments also provides a calibration tool to simplify the process.
  • The TSC2000IPW has an operating temperature range of -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It is essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
  • The TSC2000IPW is designed to operate in a variety of environments, including those with high vibration. However, it is essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The TSC2000IPW has a digital output that can be easily interfaced with a microcontroller or FPGA. Texas Instruments provides example code and interface guidelines in the datasheet and application notes to simplify the interface design process.
