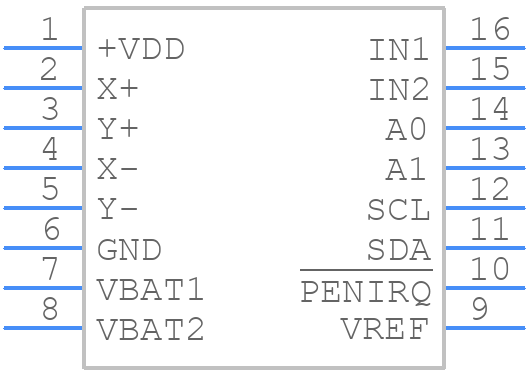

TSC2003IPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2003IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A_2021
click to zoom
3D Models
TSC2003IPW - Texas Instruments - 3D model - Small Outline Packages - PW0016A_2021
click to zoom

TSC2003IPW Details

  • Manufacturer Part Number:

    TSC2003IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLER

TSC2003IPW Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TSC2003IPW involves keeping the device close to the touch sensor, using a solid ground plane, and minimizing the length of the traces between the device and the sensor. It's also important to avoid routing digital signals near the analog signals.
  • To optimize the sensitivity of the TSC2003IPW, adjust the gain settings, ensure proper sensor design and layout, and minimize noise and interference. Additionally, adjusting the threshold settings and using a suitable sensor material can also improve sensitivity.
  • The recommended power-up sequence for the TSC2003IPW involves powering up the device before applying the voltage to the sensor. This ensures that the device is properly initialized before the sensor is enabled.
  • To troubleshoot issues with the TSC2003IPW, check the power supply, ensure proper connections, and verify the sensor design and layout. Also, check for noise and interference, and use a logic analyzer or oscilloscope to debug the issue.
  • The maximum operating frequency of the TSC2003IPW is 400 kHz. Operating the device above this frequency may result in reduced performance or incorrect operation.
