TSC2007IPW - Texas Instruments

Description: 1.2V to 3.6V, 12-Bit, Nanopower, 4-Wire Micro TOUCH SCREEN CONTROLLER with I2C? Interface

Download TSC2007IPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

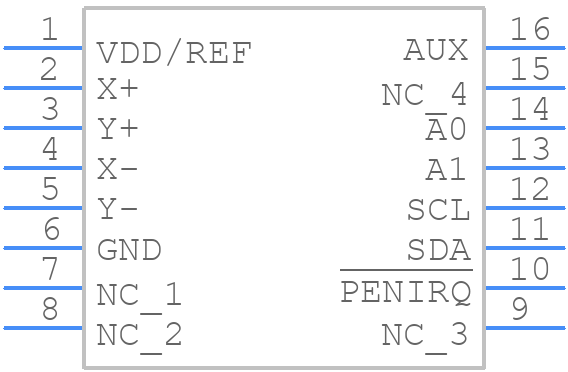

TSC2007IPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2007IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP_16
click to zoom
3D Models
TSC2007IPW - Texas Instruments - 3D model - Small Outline Packages - TSSOP_16
click to zoom

TSC2007IPW Details

  • Manufacturer Part Number:

    TSC2007IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLERS

TSC2007IPW Frequently Asked Questions (FAQs)

  • It's recommended to follow the layout guidelines provided in the datasheet, keeping the device close to the touch sensor, and using a solid ground plane to minimize noise and EMI.
  • Adjust the gain and threshold settings, and ensure proper shielding and grounding of the sensor and surrounding components. Also, consider using a noise filter or averaging algorithm to improve accuracy.
  • The maximum operating frequency is 400 kHz, but it's recommended to operate at a lower frequency (e.g., 200 kHz) for optimal performance and noise immunity.
  • Use proper shielding, grounding, and layout techniques. Add noise filters or averaging algorithms in software. Consider using a noise-reducing capacitor or a shielded cable for the sensor connection.
  • The typical power consumption is around 1.5 mA. To minimize power consumption, use the device's low-power mode, reduce the operating frequency, and optimize the sensor design for minimal capacitance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2007IPW Overview

Use the download button to access the TSC2007IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
