TSC2008IRGVT - Texas Instruments

Description: Nano-Power Touch Screen Controller with SPI

Download TSC2008IRGVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

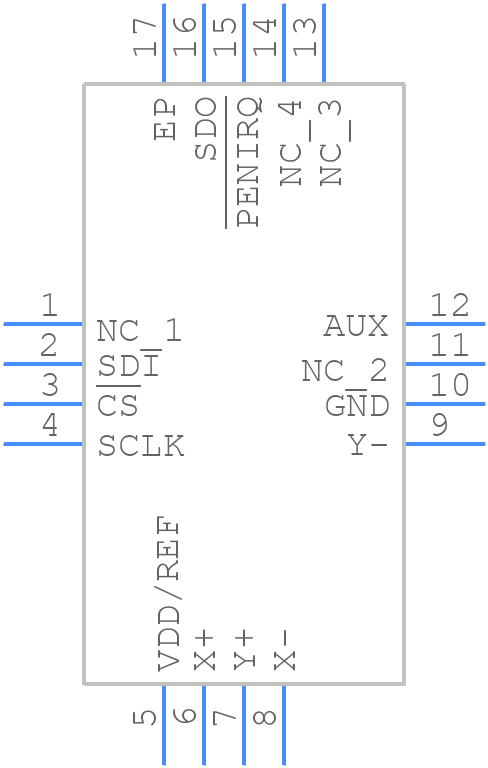

TSC2008IRGVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2008IRGVT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV0016A_2022
click to zoom
3D Models
TSC2008IRGVT - Texas Instruments - 3D model - Quad Flat No-Lead - RGV0016A_2022
click to zoom

TSC2008IRGVT Details

  • Manufacturer Part Number:

    TSC2008IRGVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLERS

TSC2008IRGVT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TSC2008IRGVT involves keeping the device close to the touch sensor, using a solid ground plane, and minimizing the length of the traces between the device and the sensor. It's also important to avoid routing digital signals near the analog signals.
  • Calibration involves adjusting the sensitivity and threshold settings to optimize the device's performance for the specific touch sensor and application. This can be done using the device's built-in calibration mode or through software calibration using the device's I2C interface.
  • The maximum operating frequency of the TSC2008IRGVT is 400 kHz, which is the maximum frequency at which the device can accurately detect touch events.
  • The TSC2008IRGVT has built-in noise filtering and interference rejection capabilities, including a noise filter and a shield driver to reduce electromagnetic interference (EMI). Additionally, the device's differential sensing architecture helps to reject common-mode noise.
  • While the TSC2008IRGVT is optimized for use with Texas Instruments' recommended touch sensors, it can be used with other capacitive touch sensors as long as they meet the device's electrical and mechanical requirements. However, optimal performance may not be guaranteed.
