TSC2008TRGVRQ1 - Texas Instruments

Description: Automotive Catalog Nano-Power Touch Screen Controller with SPI

Download TSC2008TRGVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

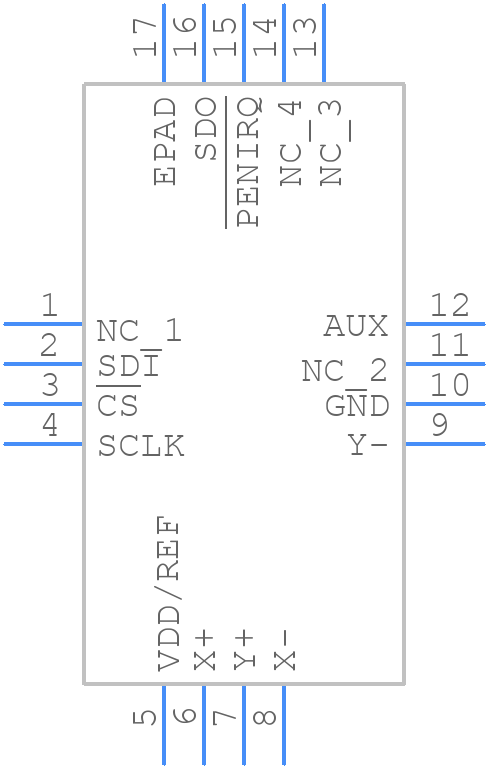

TSC2008TRGVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2008TRGVRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom
3D Models
TSC2008TRGVRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom

TSC2008TRGVRQ1 Details

  • Manufacturer Part Number:

    TSC2008TRGVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    RESISTIVE TOUCH SCREEN CONTROLLERS

TSC2008TRGVRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TSC2008 application note (SLVAUH7) that includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The TSC2008TRGVRQ1 requires calibration and configuration for a specific touch screen panel. Texas Instruments provides a Touch Screen Controller Configuration Tool (TSCCCT) that helps engineers configure the device for their specific panel, including setting the touch screen size, orientation, and sensitivity.
  • The maximum operating frequency of the TSC2008TRGVRQ1 is 10 MHz, but it can be adjusted based on the specific application requirements. Engineers should consult the datasheet and application notes for guidance on setting the optimal operating frequency.
  • The TSC2008TRGVRQ1 has built-in noise filtering and interference rejection capabilities, including a noise canceller and a frequency hopping mechanism. Additionally, engineers can implement external noise filtering and shielding techniques to further minimize the impact of noise and interference on the touch screen system.
  • The power consumption of the TSC2008TRGVRQ1 varies depending on the operating mode and frequency. Engineers can optimize power consumption by using the device's low-power modes, adjusting the operating frequency, and implementing power-saving techniques such as dynamic voltage scaling and clock gating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2008TRGVRQ1 Overview

Use the download button to access the TSC2008TRGVRQ1 schematic symbol, PCB footprint, and 3D model.
