TSC2013QPWRQ1 - Texas Instruments

Description: 1.2V to 3.6V, 12-Bit, Nanopower, 4-Wire Touch Screen Controller

Download TSC2013QPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

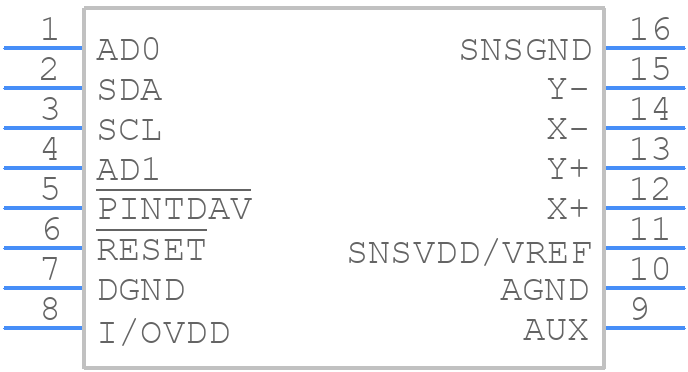

Symbol
TSC2013QPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2013QPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G16)
click to zoom
3D Models
TSC2013QPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G16)
click to zoom

TSC2013QPWRQ1 Details

  • Manufacturer Part Number:

    TSC2013QPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TSC2013QPWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSC2013QPWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the touch sensors. Additionally, using a shielded cable or a twisted pair for the touch sensor connections can help reduce noise.
  • Calibration involves adjusting the sensitivity and threshold settings to optimize the device's performance for the specific touch sensor design. This can be done using the device's built-in calibration mode or through software calibration using the device's registers.
  • The recommended power-up sequence for the TSC2013QPWRQ1 involves powering up the device's analog supply (VCC) before the digital supply (VDD). This ensures that the device's internal analog circuits are properly initialized before the digital logic is enabled.
  • To minimize the effects of EMI and RFI, use a shielded enclosure, keep the device and touch sensors away from sources of interference, and use a common-mode filter or ferrite bead on the touch sensor connections. Additionally, using a low-pass filter on the device's output can help reduce high-frequency noise.
  • The TSC2013QPWRQ1 is rated for operation over a temperature range of -40°C to 85°C. However, the device's performance may degrade at extreme temperatures, and the touch sensing accuracy may be affected.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2013QPWRQ1 Overview

Use the download button to access the TSC2013QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
