TSC2017IYZGT footprint, schematic symbol and 3D model by Texas Instruments

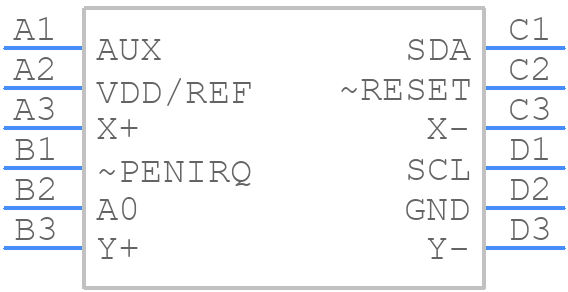

Symbol

click to zoom

PCB Footprints

TSC2017IYZGT - Texas Instruments PCB footprint - Other - Other - BGA12C50P3X4_207X156X63

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TSC2017IYZGT
Part Number TSC2017IYZGT
Manufacturer Texas Instruments
Pin Count 12
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA12C50P3X4_207X156X63
Released Date Jan 12, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

TSC2017IYZGT Details

Manufacturer Part Number:
TSC2017IYZGT
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
BGA
Pin Count:
12
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Has ADC:
YES
Clock Frequency-Max:
4 MHz
DAC Channels:
NO
DMA Channels:
NO
JESD-30 Code:
R-PBGA-B12
JESD-609 Code:
e1
Length:
2.07 mm
Moisture Sensitivity Level:
1
Number of Terminals:
12
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
PWM Channels:
NO
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.625 mm
Speed:
4 MHz
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.7 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.5695 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER
