Texas Instruments provides a recommended PCB layout in the TSC2046EIPWG4 datasheet, but it's also recommended to follow the guidelines in the TI application note 'AN-1187: PCB Layout Guidelines for TI's Touch Screen Controllers'. Additionally, it's essential to minimize the distance between the controller and the touch sensor, and to use a solid ground plane to reduce noise and EMI.
Calibration is a critical step in achieving optimal performance with the TSC2046EIPWG4. TI provides a calibration guide in the datasheet, which involves adjusting the gain, offset, and sensitivity settings. It's also recommended to use the TI-provided calibration software and to follow the guidelines in the TI application note 'AN-1211: Calibration and Testing of Touch Screen Controllers'.
The maximum operating frequency of the TSC2046EIPWG4 is 10 MHz, but it's recommended to operate at a lower frequency (typically 1-5 MHz) to ensure optimal performance and to reduce power consumption.
Noise and EMI can be a significant issue with touch screen controllers. To mitigate these issues, it's essential to follow proper PCB layout guidelines, use a solid ground plane, and add noise filtering components (such as capacitors and resistors) to the design. Additionally, TI provides guidelines for noise and EMI reduction in the application note 'AN-1187: PCB Layout Guidelines for TI's Touch Screen Controllers'.
The power consumption of the TSC2046EIPWG4 depends on the operating frequency, voltage, and other factors. According to the datasheet, the typical power consumption is around 10-15 mA at 3.3V and 1 MHz operating frequency. However, this can vary depending on the specific application and design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSC2046EIPWG4 Overview

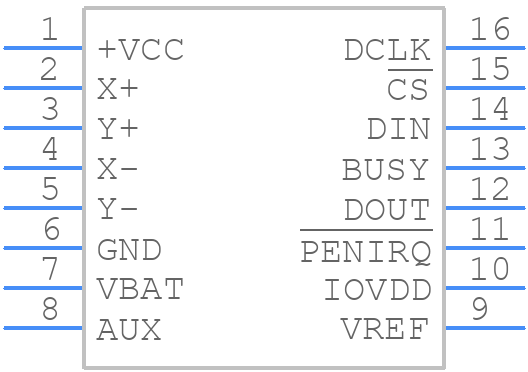

Use the download button to access the TSC2046EIPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
