TSC2046IPWG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - TSC2046IPWG4 . - Resistive Touch Screen Controller IC, SPI Interface, 12 bit Resolution, 2.2 V to 5.25 V, TSSOP-16

Download TSC2046IPWG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

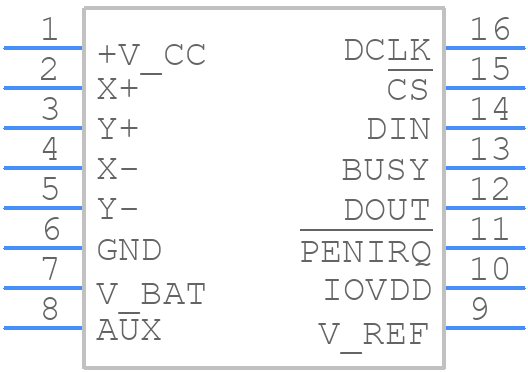

TSC2046IPWG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2046IPWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G16)
click to zoom
3D Models
TSC2046IPWG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G16)
click to zoom

TSC2046IPWG4 Details

  • Manufacturer Part Number:

    TSC2046IPWG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia, Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TSC2046IPWG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TSC2046IPWG4 datasheet, but it's also recommended to follow the guidelines in the TI application note 'AN-1187: PCB Layout Guidelines for TI's Touch Screen Controllers' for optimal performance.
  • Calibration of the TSC2046IPWG4 involves adjusting the touch screen controller's sensitivity and offset to match the specific touch screen panel being used. TI provides a calibration guide in the TSC2046IPWG4 datasheet, and also offers a calibration tool as part of their TouchPro software.
  • The maximum operating frequency of the TSC2046IPWG4 is 24 MHz, but it can be operated at lower frequencies to reduce power consumption. The optimal operating frequency depends on the specific application and touch screen panel being used.
  • Yes, the TSC2046IPWG4 is designed to work with resistive touch screen panels, but it can also be used with capacitive touch screen panels with some modifications to the PCB layout and firmware. However, TI recommends using their capacitive touch screen controllers, such as the TSC2007, for optimal performance.
  • The TSC2046IPWG4 does not have built-in gesture recognition, but it can be implemented using firmware or software running on the host processor. TI provides example code and guidelines for implementing gesture recognition in their TouchPro software and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2046IPWG4 Overview

Use the download button to access the TSC2046IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
