TSC2046IRGVR - Texas Instruments

Description: 4-Wire Touch Screen Controller with low voltage digital I/O

Download TSC2046IRGVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

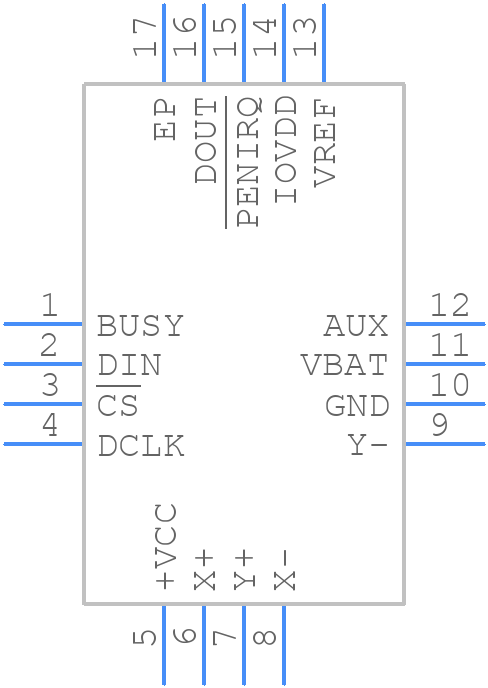

TSC2046IRGVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2046IRGVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom
3D Models
TSC2046IRGVR - Texas Instruments - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)
click to zoom

TSC2046IRGVR Details

  • Manufacturer Part Number:

    TSC2046IRGVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 1.5V TO 5.25V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TSC2046IRGVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSC2046IRGVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the touch sensors to minimize noise. Additionally, using a 4-layer PCB with a dedicated ground plane and a power plane can help reduce noise and improve performance.
  • Calibration involves adjusting the sensitivity and threshold settings to optimize touch detection. This can be done by using the device's built-in calibration mode, which involves applying a known capacitance to the sensor and adjusting the settings until the desired sensitivity is achieved.
  • The TSC2046IRGVR can support up to 46 touch sensors, depending on the specific configuration and application. However, the maximum number of sensors that can be connected may be limited by the device's power consumption and noise tolerance.
  • The TSC2046IRGVR has built-in noise filtering and shielding to minimize the effects of electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, the device's differential sensing architecture helps to reject common-mode noise and improve noise immunity.
  • The power consumption of the TSC2046IRGVR depends on the specific configuration and operating mode. To minimize power consumption, designers can use the device's low-power modes, reduce the clock frequency, and optimize the sensor configuration to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2046IRGVR Overview

Use the download button to access the TSC2046IRGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
