TSC2100IDA - Texas Instruments

Description: 4-Wire Touch Screen Controller with Stereo DAC / Mono ADC with HP/Speaker Amplifier

Download TSC2100IDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

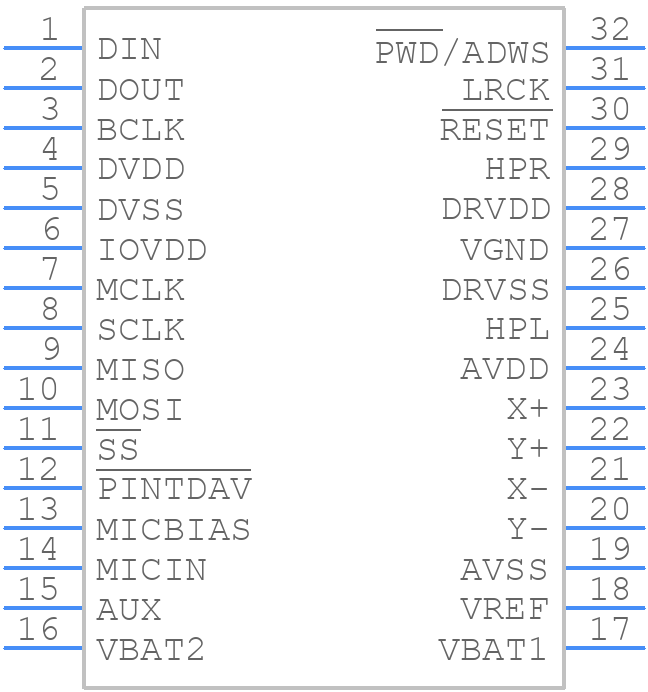

TSC2100IDA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2100IDA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DA (R-PDSO-G32)
click to zoom
3D Models
TSC2100IDA - Texas Instruments - 3D model - Small Outline Packages - DA (R-PDSO-G32)
click to zoom

TSC2100IDA Details

  • Manufacturer Part Number:

    TSC2100IDA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 1.525V TO 1.95V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TSC2100IDA Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TSC2100IDA Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure proper operation and minimize noise and interference.
  • The TSC2100IDA requires calibration to ensure accurate touch sensing. The calibration process involves adjusting the sensor's sensitivity and threshold settings. Texas Instruments provides a calibration guide in the TSC2100IDA datasheet and application notes.
  • The TSC2100IDA has an operating temperature range of -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and design considerations for high-temperature applications.
  • While the TSC2100IDA is designed to work with standard touch sensor designs, it's possible to use it with non-standard designs. However, this may require custom calibration and tuning of the device's settings. Texas Instruments provides application notes and design guides to help with custom touch sensor designs.
  • Texas Instruments provides a troubleshooting guide in the TSC2100IDA datasheet and application notes. Common issues include noise and interference, incorrect calibration, and hardware design flaws. It's essential to follow the troubleshooting guide and consult with Texas Instruments support if necessary.
