Part Image

TSC2100IRHB - Texas Instruments

Description: 4-Wire Touch Screen Controller with Stereo DAC / Mono ADC with HP/Speaker Amplifier

Download TSC2100IRHB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

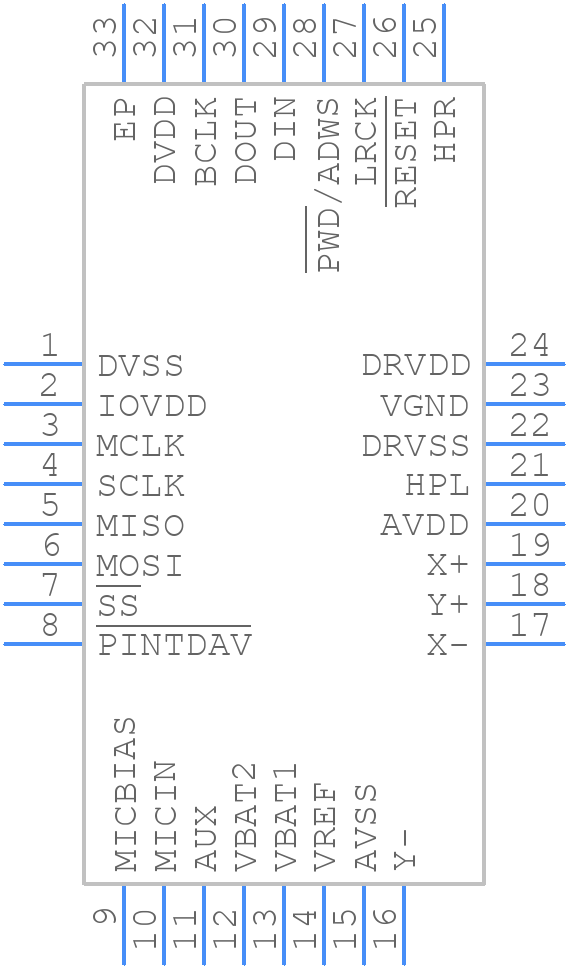

Symbol
TSC2100IRHB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2100IRHB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB(S-PVQFN-N32
click to zoom
3D Models
TSC2100IRHB - Texas Instruments - 3D model - Quad Flat No-Lead - RHB(S-PVQFN-N32
click to zoom

TSC2100IRHB Details

  • Manufacturer Part Number:

    TSC2100IRHB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 1.525V TO 1.95V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TSC2100IRHB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TSC2100IRHB Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure proper operation and minimize noise and interference.
  • TI offers a TSC2100IRHB Performance Optimization Guide (SLAA644) that provides detailed information on optimizing the device's performance, including setting the gain, adjusting the filter, and selecting the correct output mode.
  • The TSC2100IRHB is rated for operation from -40°C to 125°C (TJ). However, it's essential to consider the thermal design and heat dissipation in your system to ensure reliable operation within this range.
  • Yes, the TSC2100IRHB is designed to operate in harsh environments. However, it's crucial to follow proper mounting and packaging guidelines to ensure the device's reliability and performance in high-vibration or high-shock applications.
  • TI provides a TSC2100IRHB Troubleshooting Guide (SLAA645) that offers step-by-step guidance on identifying and resolving common issues, including noise, oscillations, and output stage faults.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2100IRHB Overview

Use the download button to access the TSC2100IRHB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC21, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
