Part Image

TSC2101IRGZ - Texas Instruments

Description: 4-Wire Touch Screen Controller, St. DAC / Mono ADC with HP/Speaker Amplifier

Download TSC2101IRGZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

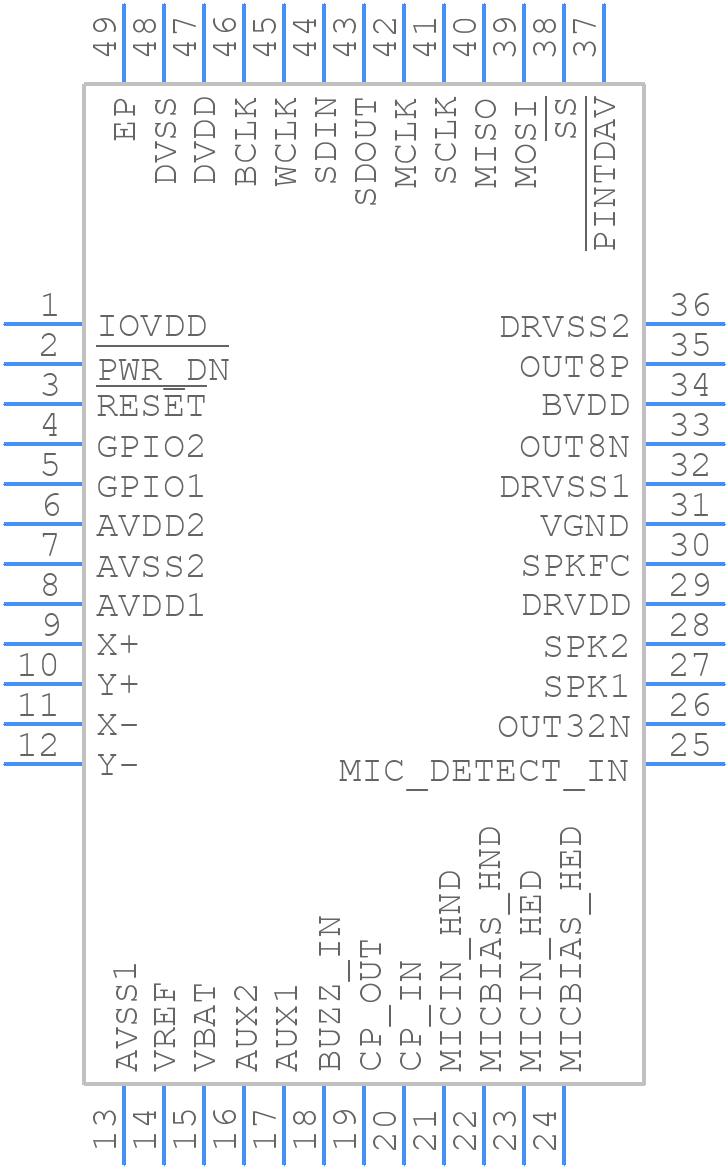

TSC2101IRGZ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2101IRGZ - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A
click to zoom
3D Models
TSC2101IRGZ - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A
click to zoom

TSC2101IRGZ Details

  • Manufacturer Part Number:

    TSC2101IRGZ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TSC2101IRGZ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TSC2101IRGZ datasheet (Section 10.1) and in the application note 'TSC2101IRGZ Layout and Routing Guidelines' (SLUA623). It's essential to follow these guidelines to ensure proper operation and minimize noise and interference.
  • The TSC2101IRGZ has several configuration options, including gain settings, filter selection, and output modes. Texas Instruments provides a configuration guide in the datasheet (Section 7) and in the application note 'TSC2101IRGZ Configuration and Calibration' (SLUA622). It's recommended to consult these resources and evaluate the specific requirements of your application to determine the optimal configuration.
  • The TSC2101IRGZ has an operating temperature range of -40°C to 125°C (Section 6.1 of the datasheet). However, it's essential to consider the thermal design and heat dissipation in your system to ensure reliable operation within this range.
  • The TSC2101IRGZ has built-in POR and BOR features to ensure proper startup and operation. It's recommended to consult the datasheet (Section 8.3) and application notes for guidance on handling these features, including the use of external reset circuits and power supply sequencing.
  • The TSC2101IRGZ has built-in ESD protection, but it's still essential to follow proper ESD handling and prevention techniques during manufacturing and assembly. Additionally, latch-up prevention requires careful attention to power supply sequencing and voltage ramp rates (Section 10.2 of the datasheet).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2101IRGZ Overview

Use the download button to access the TSC2101IRGZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC21, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
