TSC2102IDA - Texas Instruments

Description: 4-Wire Touch Screen Controller with Stereo DAC with HP Amplifier

Download TSC2102IDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

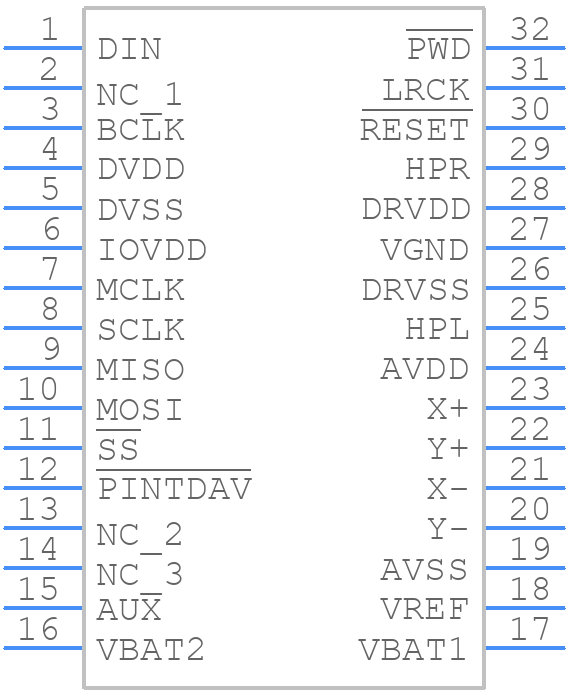

TSC2102IDA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSC2102IDA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DA (R-PDSO-G32)
click to zoom
3D Models
TSC2102IDA - Texas Instruments - 3D model - Small Outline Packages - DA (R-PDSO-G32)
click to zoom

TSC2102IDA Details

  • Manufacturer Part Number:

    TSC2102IDA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 1.525V TO 1.95V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TSC2102IDA Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TSC2102IDA evaluation module documentation, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The TSC2102IDA does not require calibration. It is a self-contained touch screen controller that uses a proprietary algorithm to detect touch events. However, the device may require configuration and tuning of its registers to optimize performance for a specific touch screen panel.
  • The TSC2102IDA can support touch screens up to 12 inches in size, but the actual maximum size may vary depending on the specific touch screen panel and the system's noise environment.
  • Yes, the TSC2102IDA can be used with a capacitive stylus. The device supports stylus detection and can report stylus touch events separately from finger touch events.
  • The TSC2102IDA has built-in noise filtering and interference rejection capabilities, including a proprietary noise cancellation algorithm. Additionally, the device can be configured to use external noise filtering components to further improve noise immunity.
