TSCDRRN005PGUCV - Honeywell

Description: Pressure Sensor 5PSI (34.47kPa) Gauge Male - 0.08" (1.93mm) Tube, Dual 0 mV ~ 100 mV 8-DIP (0.524", 13.30mm), Dual Ports, Same Side

Download TSCDRRN005PGUCV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

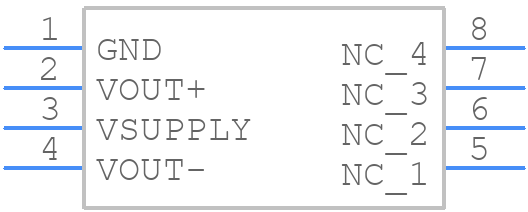

TSCDRRN005PGUCV - Honeywell - PCB symbol
