TSH511CFT - STMicroelectronics

Description: Hi-fi stereo/mono infrared receiver and stereo sub-carrier demodulator

Download TSH511CFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

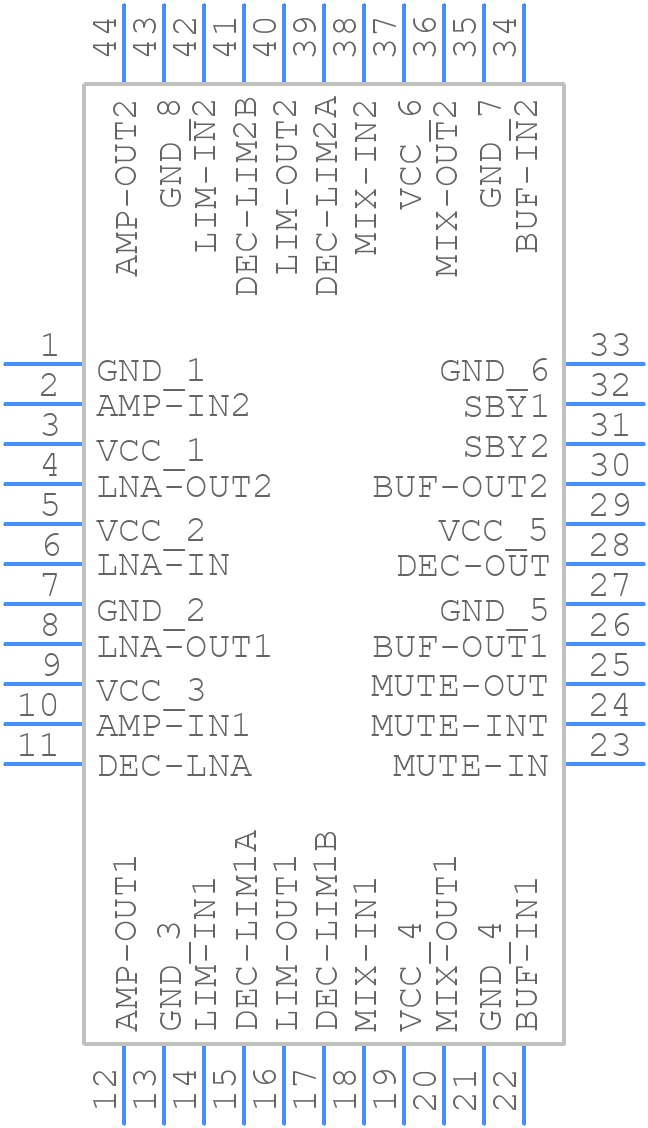

TSH511CFT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSH511CFT - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP44
click to zoom
3D Models
TSH511CFT - STMicroelectronics - 3D model - Quad Flat Packages - TQFP44
click to zoom

TSH511CFT Details

  • Manufacturer Part Number:

    TSH511CFT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, TQFP-44

  • Pin Count:

    44

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

TSH511CFT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TSH511CFT is 2.7V to 5.5V, although it can tolerate a voltage range of 2.5V to 6.5V for a short duration.
  • To ensure the TSH511CFT is in a low-power state, make sure the EN pin is set to a logic low (0V) and the VCC pin is below 2.5V. Additionally, ensure that the input pins are not driven and the output pins are not loaded.
  • The maximum allowable power dissipation for the TSH511CFT is 500mW, and it's essential to ensure that the device does not exceed this limit to prevent overheating and damage.
  • To handle ESD protection for the TSH511CFT, ensure that the device is handled in an ESD-protected environment, and use ESD-protective packaging and handling equipment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the circuit.
  • For optimal performance and minimal noise, it's recommended to follow a star-grounding layout, keep the input and output traces short and separate, and use a solid ground plane. Additionally, avoid running high-frequency signals near the device's power pins.
