TSH512CYFT - STMicroelectronics

Description: Hi-fi stereo/mono infrared transmitter and stereo sub-carrier generator

Download TSH512CYFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

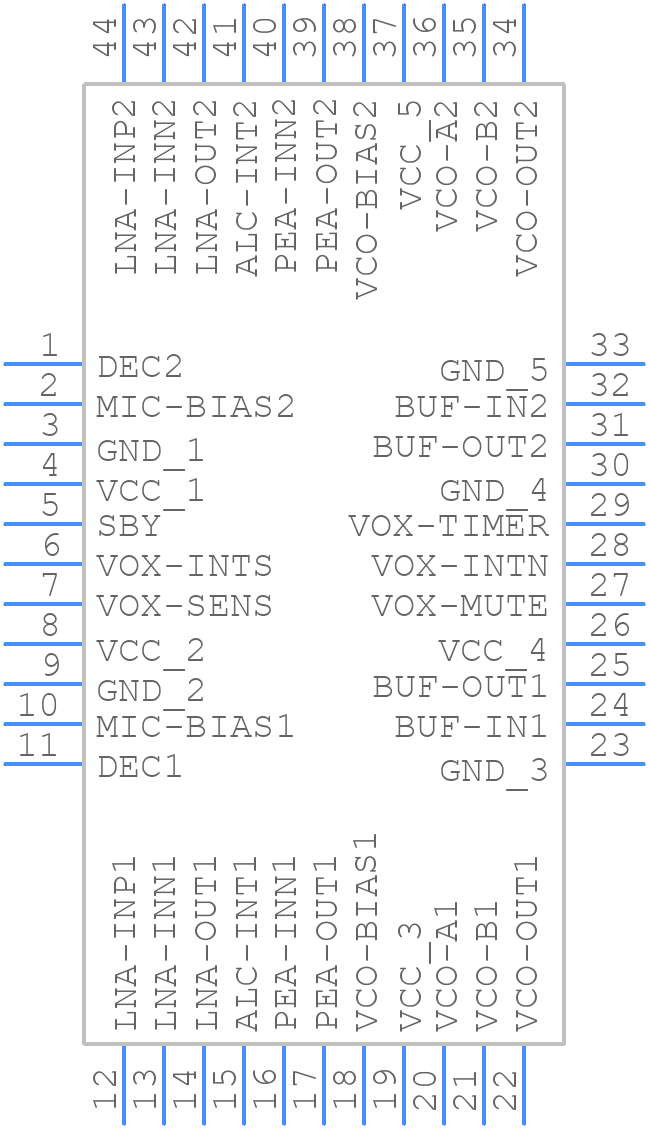

TSH512CYFT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSH512CYFT - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 44 10x10x1.4 mm
click to zoom
3D Models
TSH512CYFT - STMicroelectronics - 3D model - Quad Flat Packages - LQFP 44 10x10x1.4 mm
click to zoom

TSH512CYFT Details

  • Manufacturer Part Number:

    TSH512CYFT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, TQFP-44

  • Pin Count:

    44

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

TSH512CYFT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TSH512CYFT is 2.7V to 5.5V, with a typical voltage of 3.3V.
  • The VCC pin should be connected to the power supply (2.7V to 5.5V), and the VCCIO pin should be connected to the I/O voltage (1.65V to 5.5V) or tied to VCC if the I/O voltage is the same as the power supply voltage.
  • The NC pins should be left unconnected and not be tied to any voltage or signal, as they are reserved for internal use or testing purposes.
  • The TSH512CYFT has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane or a heat sink to dissipate heat. Ensure good thermal conductivity and follow proper PCB design guidelines for thermal management.
  • The TSH512CYFT supports clock frequencies up to 100 MHz, but the actual frequency may be limited by the system design and the quality of the clock signal.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSH512CYFT Overview

Use the download button to access the TSH512CYFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSH51, or try a keyword search, such as Other Consumer ICs

About STMicroelectronics
