TSM1013AIDT - STMicroelectronics

Description: TSM1013AIDT, Battery Charge Controller, 50mA, 8-Pin SO

Download TSM1013AIDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

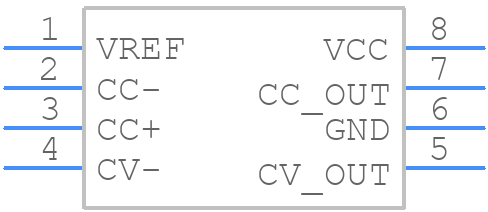

TSM1013AIDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSM1013AIDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - so8
click to zoom
3D Models
TSM1013AIDT - STMicroelectronics - 3D model - Small Outline Packages - so8
click to zoom

TSM1013AIDT Details

  • Manufacturer Part Number:

    TSM1013AIDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TSM1013AIDT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ripple current rating, and temperature coefficient.
  • The maximum allowed voltage drop across the internal switch is not explicitly stated in the datasheet. However, as a general rule of thumb, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses.
  • The TSM1013AIDT is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and derate the output current accordingly to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the TSM1013AIDT, start by verifying the input voltage, output voltage, and output current. Check the PCB layout for thermal issues, and ensure that the input capacitor and output capacitor are properly selected. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the application note AN4553 for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM1013AIDT Overview

Use the download button to access the TSM1013AIDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM10, or try a keyword search, such as Power Management Circuits
