TSM1014AID - STMicroelectronics

Description: Low consumption voltage and current controller for battery chargers and adapters

Download TSM1014AID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

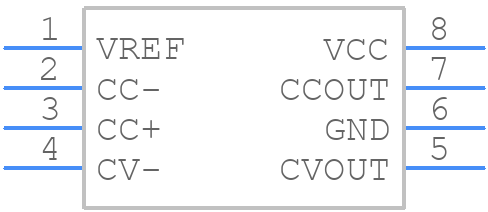

TSM1014AID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSM1014AID - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 8_2022
click to zoom
3D Models
TSM1014AID - STMicroelectronics - 3D model - Small Outline Packages - SO 8_2022
click to zoom

TSM1014AID Details

  • Manufacturer Part Number:

    TSM1014AID

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.18 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TSM1014AID Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The input capacitors should be selected based on the input voltage range, ripple current, and ESR requirements. A minimum capacitance of 10uF is recommended, and X7R or X5R dielectric capacitors are suitable for most applications. Refer to the application note AN4553 for more details.
  • The maximum ambient temperature for the TSM1014AID is 85°C, but it can be derated to 70°C for high-reliability applications. Refer to the datasheet for thermal derating curves and guidelines.
  • Yes, the TSM1014AID is designed to withstand vibrations up to 10g peak acceleration, but it's recommended to follow the guidelines in the application note AN4553 for PCB design and component selection to ensure reliability in high-vibration environments.
  • Refer to the troubleshooting guide in the application note AN4553, which provides step-by-step procedures for identifying and resolving common issues. Additionally, STMicroelectronics provides a dedicated support team for technical assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM1014AID Overview

Use the download button to access the TSM1014AID schematic symbol, PCB footprint, and 3D model.
