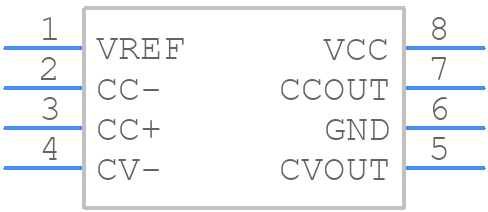

TSM1014ID - STMicroelectronics

TSM1014ID Details

• Manufacturer Part Number:

  TSM1014ID

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  PLASTIC, SO-8

• Pin Count:

  8

• Country Of Origin:

  Morocco

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7.35

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  VOLTAGE SUPERVISOR/RESET IC

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  4.9 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Current-Max (Isup):

  0.18 mA

• Supply Voltage-Max (Vsup):

  28 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  18 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
