TSM101AIDT - STMicroelectronics

Description: TSM101AIDT, DC-DC Controller, 0.01A, 32 V, Voltage and Current, 8-Pin, SOIC

Download TSM101AIDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

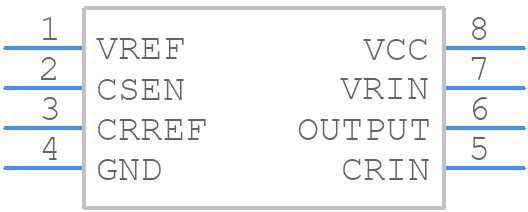

TSM101AIDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSM101AIDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - so
click to zoom
3D Models
TSM101AIDT - STMicroelectronics - 3D model - Small Outline Packages - so
click to zoom

TSM101AIDT Details

  • Manufacturer Part Number:

    TSM101AIDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TSM101AIDT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2663, which includes guidelines for component placement, routing, and thermal management.
  • The TSM101AIDT requires a stable power supply with decoupling capacitors (e.g., 10uF and 100nF) close to the device. Ensure the power supply rails are clean and well-filtered, and follow the recommended power-up sequence.
  • The TSM101AIDT is rated for operation from -40°C to 125°C (junction temperature). However, the device can be operated at a maximum ambient temperature of 85°C with proper thermal management.
  • Configure the device according to the application note AN2663, which provides guidelines for setting the internal voltage regulator, configuring the output voltage, and optimizing the device for specific applications.
  • The TSM101AIDT has built-in ESD protection (Human Body Model: 2kV, Machine Model: 200V, Charged Device Model: 500V). Follow proper handling and assembly procedures to prevent latch-up and ESD damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM101AIDT Overview

Use the download button to access the TSM101AIDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM10, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
