- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TSM101CDT
- Part Number TSM101CDT
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 8 PINS - PLASTIC MICROPACKAGE (SO)
- Released Date Sep 9, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TSM101CDT Details
-
Manufacturer Part Number:
TSM101CDT
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
MICRO, PLASTIC, SO-8
-
Pin Count:
8
-
Country Of Origin:
Morocco
-
ECCN Code:
EAR99
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
STMicroelectronics
TSM101CDT Frequently Asked Questions (FAQs)
-
STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
-
To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-precision voltage reference, and minimize noise on the analog output lines. Additionally, the device should be operated within its specified temperature range, and the thermal pad should be properly connected to a heat sink or a large copper area on the PCB.
-
The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the voltage remains within the specified range.
-
The TSM101CDT is rated for operation up to 150°C. However, the device's accuracy and reliability may degrade at high temperatures. It's essential to consult the datasheet and application notes for specific guidance on using the device in high-temperature environments.
-
The TSM101CDT provides an analog output voltage that's proportional to the temperature. This output can be connected to an analog-to-digital converter (ADC) on a microcontroller. The microcontroller can then read the ADC value and convert it to a temperature reading using the device's transfer function.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TSM101CDT Overview

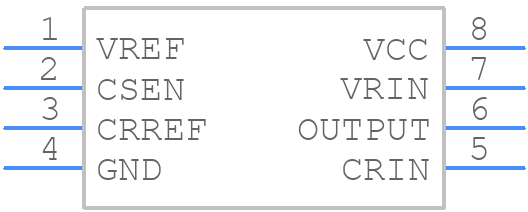

Use the download button to access the TSM101CDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM10,
or try a keyword search, such as Other Signal Circuits
