- Part Number TSM101IDT
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO 8_2022
- Released Date Sep 9, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TSM101IDT Details
-
Manufacturer Part Number:
TSM101IDT
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
MICRO, PLASTIC, SO-8
-
Pin Count:
8
-
Country Of Origin:
Morocco
-
ECCN Code:
EAR99
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
STMicroelectronics
TSM101IDT Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. STMicroelectronics provides guidelines in the datasheet and application notes, and recommends using X7R or X5R ceramic capacitors with a voltage rating of at least 2x the input voltage.
-
The TSM101IDT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal management system used. It's recommended to consult the datasheet and application notes for thermal management guidelines.
-
Yes, the TSM101IDT is qualified for use in high-reliability and automotive applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to consult the datasheet and application notes for specific guidelines and to ensure that the device meets the requirements of the target application.
-
STMicroelectronics provides guidelines for EMC in the application note AN4553, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant standards.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TSM101IDT Overview

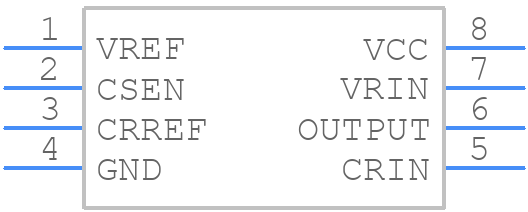

Use the download button to access the TSM101IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM10,
or try a keyword search, such as Other Signal Circuits
