- Part Number TSM101CD
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO 8_2022
- Released Date Sep 9, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TSM101CD Details
-
Manufacturer Part Number:
TSM101CD
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
MICRO, PLASTIC, SO-8
-
Pin Count:
8
-
Country Of Origin:
Morocco
-
ECCN Code:
EAR99
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
STMicroelectronics
TSM101CD Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
-
The maximum allowed voltage drop across the TSM101CD is typically around 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop may affect the device's performance, efficiency, and reliability.
-
The TSM101CD is rated for operation up to 150°C, but its performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal management, including heat sinking and cooling, to ensure reliable operation in high-temperature environments.
-
To troubleshoot issues with the TSM101CD, start by verifying the PCB layout, component values, and input/output connections. Check for signs of overheating, and ensure that the device is operated within its recommended specifications. Use oscilloscopes and other diagnostic tools to analyze the device's behavior and identify the root cause of the issue.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TSM101CD Overview

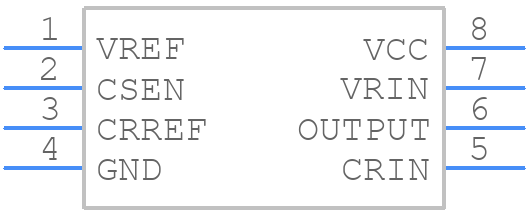

Use the download button to access the TSM101CD schematic symbol, PCB footprint, and 3D model.
