- Part Number TSM101ID
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO 8_2022
- Released Date Sep 9, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TSM101ID Details
-
Manufacturer Part Number:
TSM101ID
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
MICRO, PLASTIC, SO-8
-
Pin Count:
8
-
Country Of Origin:
Morocco
-
ECCN Code:
EAR99
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
STMicroelectronics
TSM101ID Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The TSM101ID has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To handle this, ensure proper thermal design and heat sinking, and consider implementing a thermal monitoring and shutdown circuit in your system design.
-
The EN pin is a digital input and should not exceed the maximum rating of 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a buffer circuit to ensure the EN pin voltage remains within the specified range.
-
The TSM101ID is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. If your application requires operation above 125°C, consider using a different device or implementing additional cooling measures.
-
To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering components as needed, and consider implementing electromagnetic interference (EMI) filters on the input and output lines. Additionally, ensure that your system design meets relevant EMC standards and regulations.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TSM101ID Overview

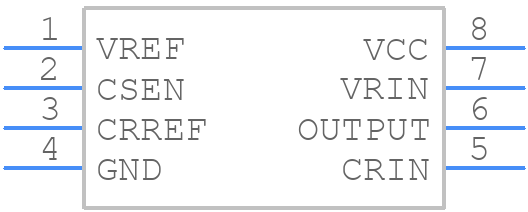

Use the download button to access the TSM101ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM10,
or try a keyword search, such as Other Signal Circuits
