TSM104WIPWR - Texas Instruments

Description: Quad OpAmp And Programmable Voltage Reference

Download TSM104WIPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

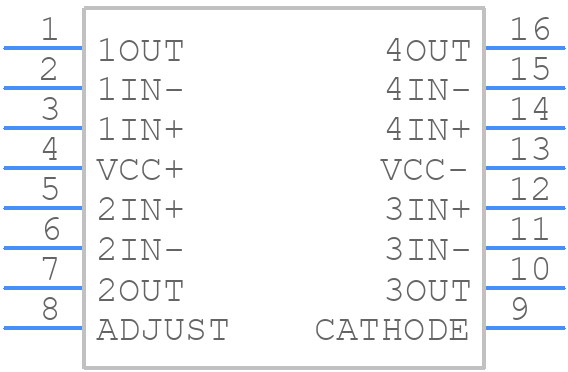

PCB Footprints
TSM104WIPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
TSM104WIPWR - Texas Instruments  - 3D model - Small Outline Packages - PW0016A
click to zoom

TSM104WIPWR Details

  • Manufacturer Part Number:

    TSM104WIPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00003 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Min:

    0.1 V/us

  • Slew Rate-Nom:

    0.3 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    900

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    4.4 mm

TSM104WIPWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TSM104WIPWR datasheet (Section 10.2) and in the application note SLUAAC4. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
  • The selection of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The output capacitor should be selected based on the desired output ripple and transient response. Refer to the datasheet (Section 7.3) and application notes for more information.
  • The TSM104WIPWR is rated for operation up to 85°C ambient temperature. However, it's essential to consider the thermal derating curves (Section 6.3 of the datasheet) to ensure reliable operation and prevent overheating.
  • The TSM104WIPWR has built-in OVP and UVP features. To implement these features, connect the OVP and UVP pins to the input voltage rail through resistive dividers. The threshold voltages can be adjusted by selecting the appropriate resistors. Refer to the datasheet (Section 7.4) for more information.
  • The recommended input voltage range for the TSM104WIPWR is 2.7V to 5.5V. Operating outside this range may affect the converter's performance, efficiency, and reliability.
