TSU6721YFFR - Texas Instruments

Description: USB Port Multimedia Load Switch Supports USB, UART, AUDIO, ID, MIC

Download TSU6721YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

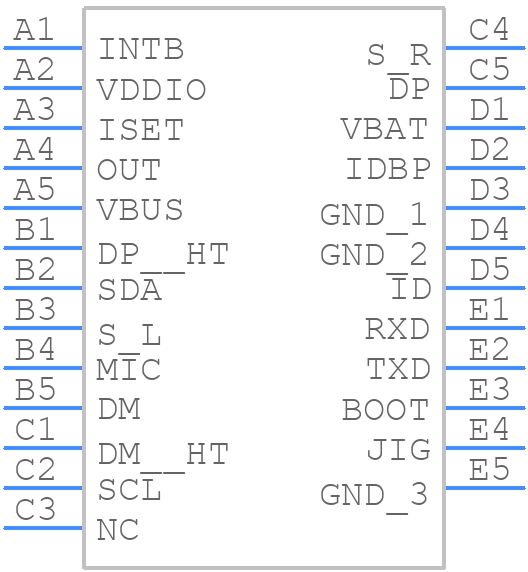

TSU6721YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TSU6721YFFR - Texas Instruments PCB footprint - BGA - BGA - DSBGA - 0.625 mm max height
click to zoom
3D Models
TSU6721YFFR - Texas Instruments - 3D model - BGA - DSBGA - 0.625 mm max height
click to zoom

TSU6721YFFR Details

  • Manufacturer Part Number:

    TSU6721YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    510000 kHz

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2.066 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max:

    0.155 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.066 mm

TSU6721YFFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSU6721YFFR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 1.65V to 5.5V, and that the output voltage is within the recommended range of 1.2V to 5.5V.
  • The TSU6721YFFR can handle a maximum output current of 200mA. However, it's recommended to keep the output current below 150mA to ensure optimal performance and to prevent overheating.
  • To protect the TSU6721YFFR from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to regulate the input voltage. Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • The recommended operating temperature range for the TSU6721YFFR is -40°C to 125°C. However, it's recommended to keep the device within a temperature range of 0°C to 85°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSU6721YFFR Overview

Use the download button to access the TSU6721YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSU67, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
