TUSB1064IRNQR - Texas Instruments

Description: USB Interface IC USB Type-C DP Alt Mode 10 Gbps Linear Redriver Crosspoint Switch for Sink Side 40-WQFN -40 to 85

Download TUSB1064IRNQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

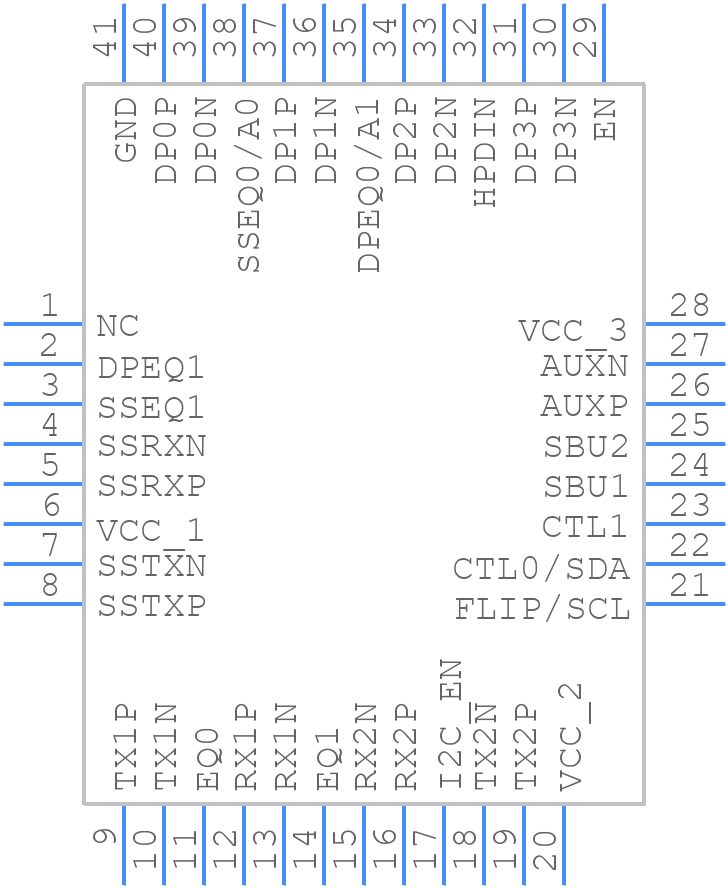

TUSB1064IRNQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB1064IRNQR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RNQ0040A+
click to zoom
3D Models
TUSB1064IRNQR - Texas Instruments - 3D model - Quad Flat No-Lead - RNQ0040A+
click to zoom

TUSB1064IRNQR Details

  • Manufacturer Part Number:

    TUSB1064IRNQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WQFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-05-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    7

  • High Level Input Current-Max:

    0.00008 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    5

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.3 V

  • Output Low Current-Max:

    0.003 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    0.3 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    0.3 ns

  • Width:

    4 mm

TUSB1064IRNQR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TUSB1064IRNQR datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website offers a PCB layout guide and a layout checklist to ensure optimal performance.
  • To configure the TUSB1064IRNQR for USB 3.2 Gen 2 operation, set the MODE pin to logic high (VCC) and ensure that the device is powered from a 3.3V supply. Additionally, the device must be connected to a USB 3.2 Gen 2-capable host controller and cable.
  • The TUSB1064IRNQR supports cable lengths up to 3 meters (10 feet) for USB 3.2 Gen 2 operation, and up to 5 meters (16.4 feet) for USB 2.0 operation, assuming a high-quality cable with proper shielding and termination.
  • The TUSB1064IRNQR has an integrated power management system that allows for power sequencing and voltage regulation. The device can be powered from a single 3.3V supply, and the power management system ensures that the device powers up and down correctly. Refer to the datasheet for specific power sequencing guidelines.
  • The TUSB1064IRNQR has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. The device can operate up to 85°C ambient temperature, but thermal management is critical to ensure reliable operation. Refer to the datasheet for thermal management guidelines and recommendations.
