Texas Instruments provides a recommended layout and routing guide in the TUSB1104IRNQT Layout Guidelines application note (SLVAUH7). This document includes detailed information on component placement, trace routing, and PCB design considerations to ensure optimal performance and signal integrity.
The TUSB1104IRNQT can be configured using the TI-provided USB Type-C Configuration Software Tool (TICFSS). This tool enables configuration of PD policies, Alt Mode settings, and other device-specific parameters. The tool is available for download on the TI website.
The TUSB1104IRNQT has a typical operating current of 10mA (VCC = 3.3V) and a maximum power consumption of 250mW. Thermal characteristics include a junction-to-ambient thermal resistance (RθJA) of 42.5°C/W. For more detailed information, refer to the device datasheet and the Thermal Design Considerations for TUSB1104IRNQT application note (SLVAUH6).
The TUSB1104IRNQT has built-in fault detection and protection features, including over-voltage protection (OVP), under-voltage protection (UVP), as well as short-circuit protection. Additionally, the device can be configured to detect and respond to faults using the TI-provided firmware and the USB Type-C Configuration Software Tool (TICFSS).
The TUSB1104IRNQT is designed to meet various EMC and EMI standards, including CISPR 32, FCC Part 15, and EN 55022. To ensure compliance, follow the recommended PCB layout and design guidelines, and implement proper shielding and filtering techniques. Refer to the Electromagnetic Compatibility (EMC) for TUSB1104IRNQT application note (SLVAUH5) for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB1104IRNQT Overview

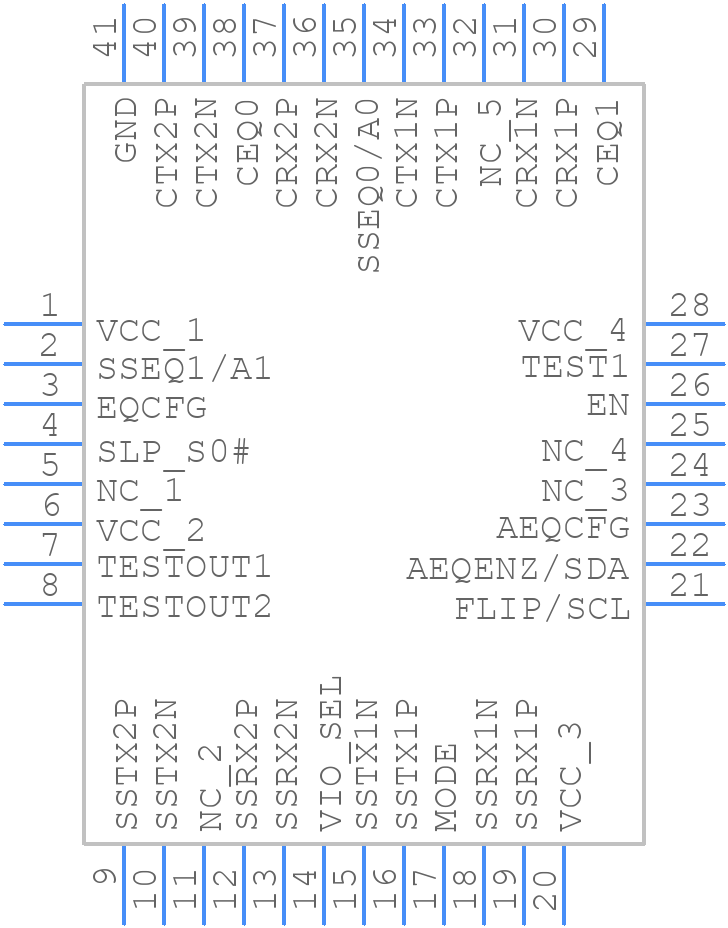

Use the download button to access the TUSB1104IRNQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB1,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
