Texas Instruments provides a recommended PCB layout in the TUSB1105RGTRG4 datasheet, but it's also recommended to follow the guidelines in the 'High-Speed Layout Guidelines' application note (SLVA626) for optimal performance.
To ensure signal integrity, it's essential to follow proper PCB design and layout practices, such as using differential pairs, minimizing trace length and impedance mismatches, and using signal shielding. Additionally, use the TUSB1105RGTRG4's built-in signal conditioning features, such as the programmable equalizer and de-emphasis, to optimize signal quality.
The TUSB1105RGTRG4 supports cable lengths up to 3 meters, but this can vary depending on the specific application, cable quality, and signal frequency. It's recommended to perform signal integrity analysis and testing to determine the maximum cable length for a specific design.
The TUSB1105RGTRG4 can be configured for different USB speeds using the device's registers. The device supports USB 2.0, USB 3.2 Gen 1, and USB 3.2 Gen 2 speeds, and can be configured using the USB_SPEED register. Refer to the TUSB1105RGTRG4 datasheet and programming guide for more information.
The power consumption of the TUSB1105RGTRG4 varies depending on the operating mode and speed. In low-power mode, the device consumes around 10 mA, while in high-speed mode, it consumes around 150 mA. Refer to the TUSB1105RGTRG4 datasheet for more detailed power consumption information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB1105RGTRG4 Overview

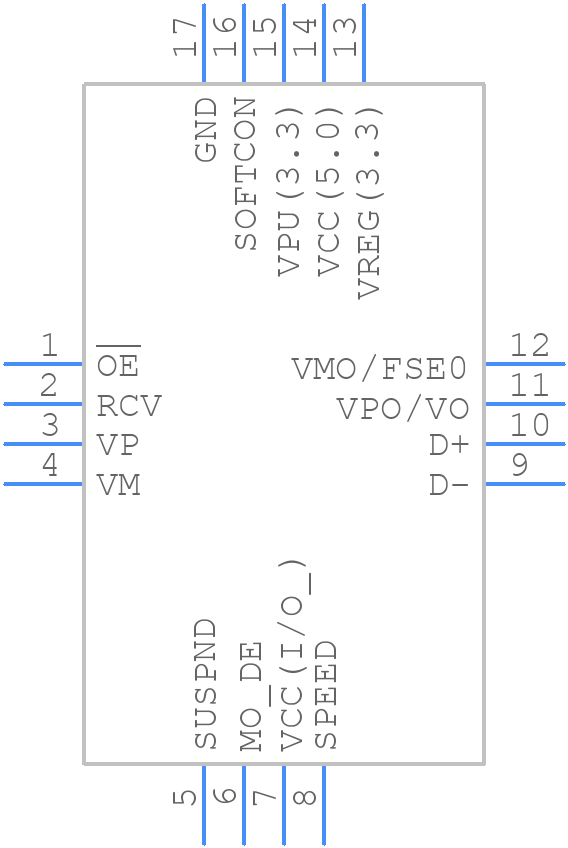

Use the download button to access the TUSB1105RGTRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB1,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
