Texas Instruments provides a recommended PCB layout in the TUSB1106IPWRQ1 datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website offers a PCB layout guide and a layout checklist to ensure optimal performance.
To ensure EMC with TUSB1106IPWRQ1, follow the guidelines in the TI application note 'EMC Design Considerations for USB' (SLAA634). This includes using a shielded cable, minimizing loop areas, and using a common-mode choke. Also, ensure that the device is placed in a shielded enclosure and that the PCB is designed with EMC in mind.
The maximum cable length supported by TUSB1106IPWRQ1 is 3 meters, as specified in the USB 2.0 specification. However, the actual cable length may be limited by the signal attenuation and the quality of the cable. It is recommended to use a high-quality cable and to follow the guidelines in the TI application note 'USB Cable and Connector Requirements' (SLAA242).
TUSB1106IPWRQ1 has a built-in power management feature that allows it to enter a low-power state when not in use. To handle power management, ensure that the device is properly configured and that the power management pins are connected correctly. Additionally, follow the guidelines in the TI application note 'Power Management for USB Devices' (SLAA635).
TUSB1106IPWRQ1 has a maximum junction temperature of 150°C. To ensure proper thermal management, follow the guidelines in the TI application note 'Thermal Management for USB Devices' (SLAA636). This includes using a heat sink, ensuring good airflow, and minimizing thermal resistance. Additionally, ensure that the device is operated within the recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB1106IPWRQ1 Overview

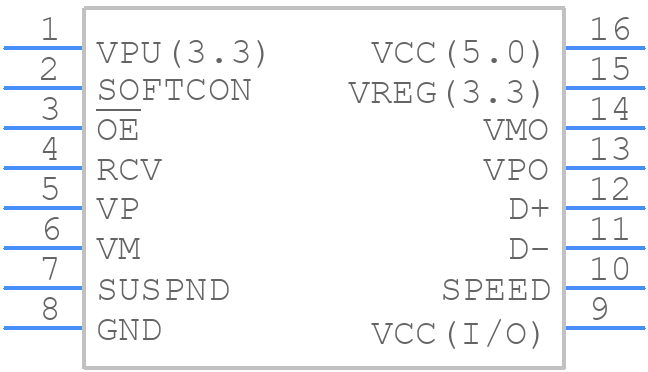

Use the download button to access the TUSB1106IPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB1,
or try a keyword search, such as Line Driver or Receivers
