Texas Instruments provides a recommended PCB layout in the TUSB1106RGTR datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, TI offers a PCB layout checklist and a layout guide for USB devices that can be helpful.
To ensure EMC with the TUSB1106RGTR, follow the guidelines in the TI application note 'EMC Design Considerations for USB' (SLAA634). This includes using a shielded cable, minimizing loop areas, and using a common-mode choke. Also, ensure that the device is placed in a shielded enclosure and that the PCB is designed with EMC in mind.
The TUSB1106RGTR supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1 meter (3.3 feet) for USB 3.2 Gen 1. However, the actual cable length may vary depending on the specific application, cable quality, and system configuration.
No, the TUSB1106RGTR is not designed to support USB 3.2 Gen 2 speeds (up to 20 Gbps). It is only compatible with USB 2.0 and USB 3.2 Gen 1 (up to 5 Gbps) speeds. For USB 3.2 Gen 2 applications, consider using a different device, such as the TUSB422 or TUSB524.
The TUSB1106RGTR has an integrated power management system that includes overcurrent protection, undervoltage lockout, and thermal shutdown. Additionally, the device can be configured to operate in low-power modes, such as suspend and resume, to reduce power consumption. Refer to the datasheet and application notes for more information on power management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB1106RGTR Overview

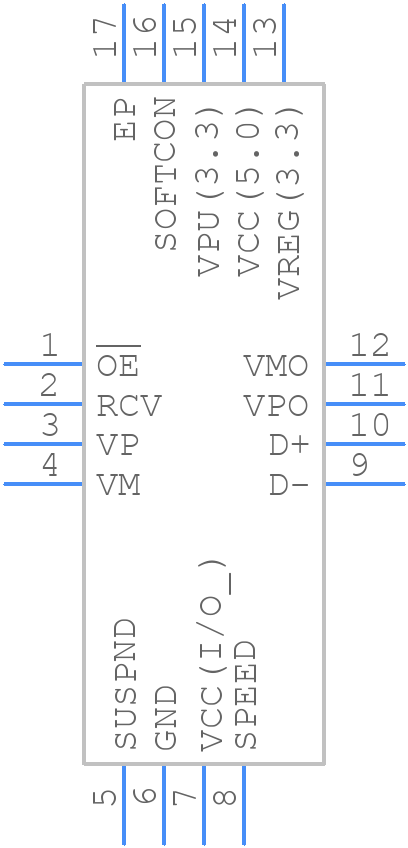

Use the download button to access the TUSB1106RGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB1,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
