Texas Instruments provides a recommended PCB layout in the TUSB1210 datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure signal integrity, it's crucial to follow proper PCB design practices, such as using differential pairs, minimizing trace lengths, and avoiding vias and stubs. Additionally, using a common mode filter, such as the TUSB1210's built-in filter, can help reduce electromagnetic interference (EMI) and improve signal quality.
The TUSB1210BRHBTQ1 supports cable lengths up to 3 meters, as specified in the USB 3.2 Gen 1 specification. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions.
The TUSB1210BRHBTQ1 has a built-in power management feature that allows it to enter a low-power state when not in use. To implement power management, you can use the device's power-down mode, which can be controlled through the I2C interface. Additionally, you can use external power management ICs to further reduce power consumption.
The TUSB1210BRHBTQ1 has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink, thermal pad, or thermal interface material. You should also follow proper PCB design practices to minimize thermal resistance and ensure efficient heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB1210BRHBTQ1 Overview

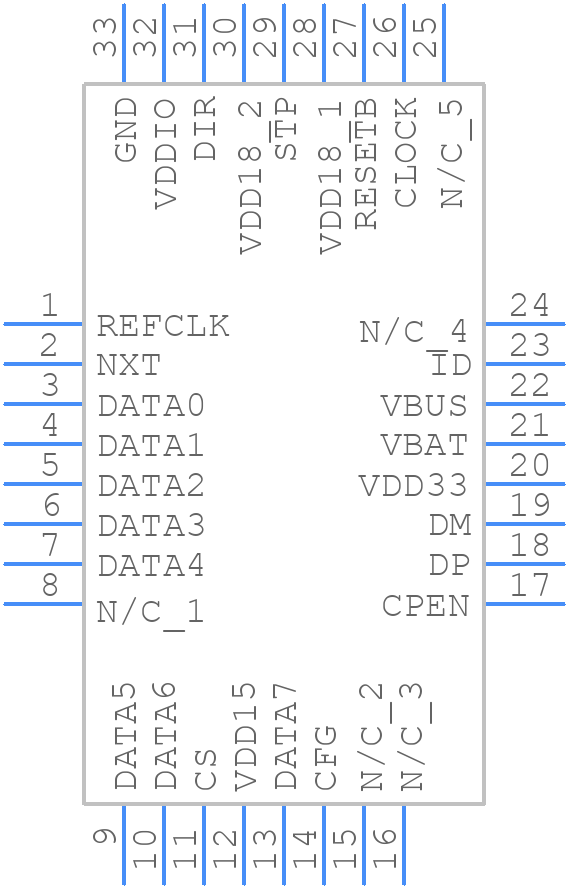

Use the download button to access the TUSB1210BRHBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB1,
or try a keyword search, such as Network Interfaces
