Part Image

TUSB2046BVF - Texas Instruments

Description: TUSB2046BVFG4, USB Transceiver 5-Port at 12Mbit/s, 3.3V, 32-Pin LQFP

Download ECAD Model

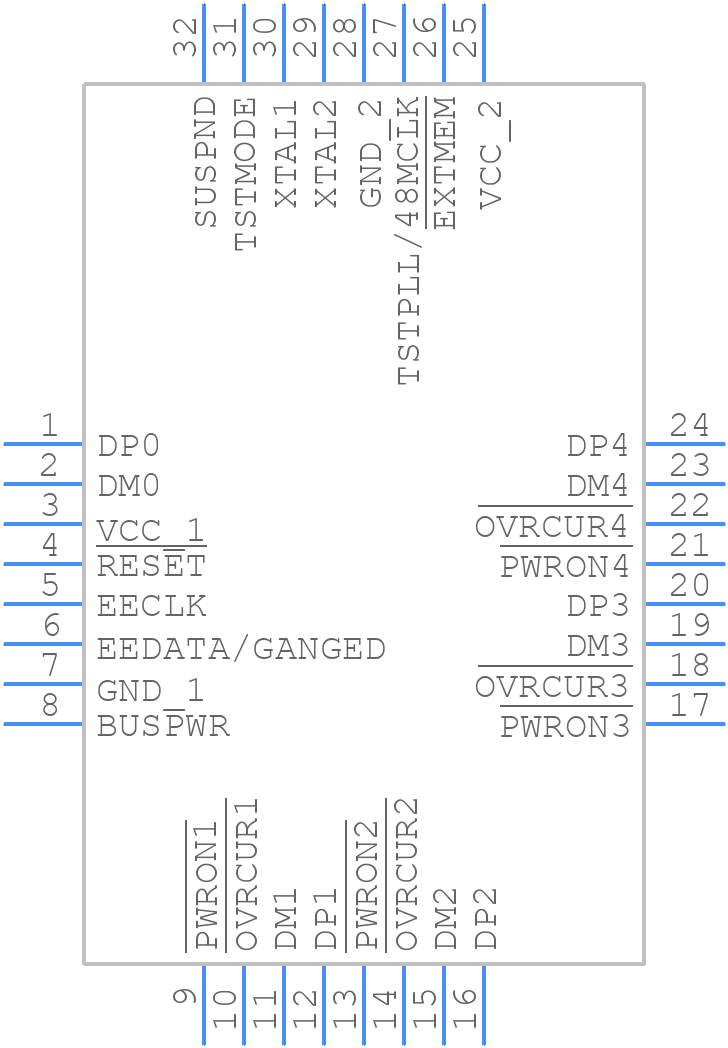

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TUSB2046BVF - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - VF0032A
click to zoom

3D Models

TUSB2046BVF - Texas Instruments  - 3D model - Quad Flat Packages - VF0032A
click to zoom

TUSB2046BVF Details

  • Manufacturer Part Number:

    TUSB2046BVF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LQFP, QFP32,.35SQ,32

  • Pin Count:

    32

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.03

  • Samacsys Modified On:

    2021-08-02 16:02:48

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    6 MHz

  • Data Transfer Rate-Max:

    12 MBps

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    3.3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Subcategory:

    Bus Controllers

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

Risk Rank: Design Risk

TUSB2046BVF — Texas Instruments
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

TUSB2046BVF Overview

Use the download button to access the TUSB2046BVF schematic symbol, PCB footprint, and 3D model.
TUSB2046BVF by Texas Instruments has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2, or try a keyword search, such as Bus Controllers

Parts related to TUSB2046BVF

Showing 0 results

TUSB2046BVF Alternates

Showing results

Image Part Number Design Risk Rank Model
Part Image TUSB2046BVFR Texas Instruments

4-port USB 2.0 12-Mbps USB full-speed hub 32-LQFP 0 to 70

Part Image TUSB2046BIVFRG4 Texas Instruments

4-Port USB 2.0 12 Mbps USB Hub 32-LQFP -40 to 85

Part Image TUSB2046VF Texas Instruments

4-Port USB Hub W/Optional Serial EEPROM Interface (Input Clock: 6 MHz Crystal) 32-LQFP 0 to 70

Part Image TUSB2046BIVFRG3 Texas Instruments

UNIVERSAL SERIAL BUS CONTROLLER, PQFP32

Part Image TUSB2046VFR Texas Instruments

4-Port USB Hub W/Optional Serial EEPROM Interface (Input Clock: 6 MHz Crystal) 32-LQFP 0 to 70

For a full list of alternate parts for TUSB2046BVF, check out FindChips.com
