A good PCB layout for the TUSB2046BVFR involves keeping the USB traces as short as possible, using a solid ground plane, and placing the device close to the USB connector. Additionally, it's recommended to use a common mode filter and a shielded cable to reduce EMI.
The TUSB2046BVFR requires a single 3.3V power supply. It's recommended to power the device after the USB bus is powered, and to ensure that the power supply is stable before connecting to the USB bus.
The TUSB2046BVFR has a junction temperature range of -40°C to 85°C. To ensure reliable operation, it's recommended to provide adequate heat sinking, avoid overheating, and follow the recommended PCB layout guidelines.
To implement a robust and reliable USB connection, ensure that the device is properly powered, use a shielded cable, and follow the recommended PCB layout guidelines. Additionally, implement error detection and correction mechanisms in your firmware to handle data transmission errors.
The TUSB2046BVFR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during manufacturing and assembly. Additionally, use ESD protection devices such as TVS diodes to protect the device from external ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB2046BVFR Overview

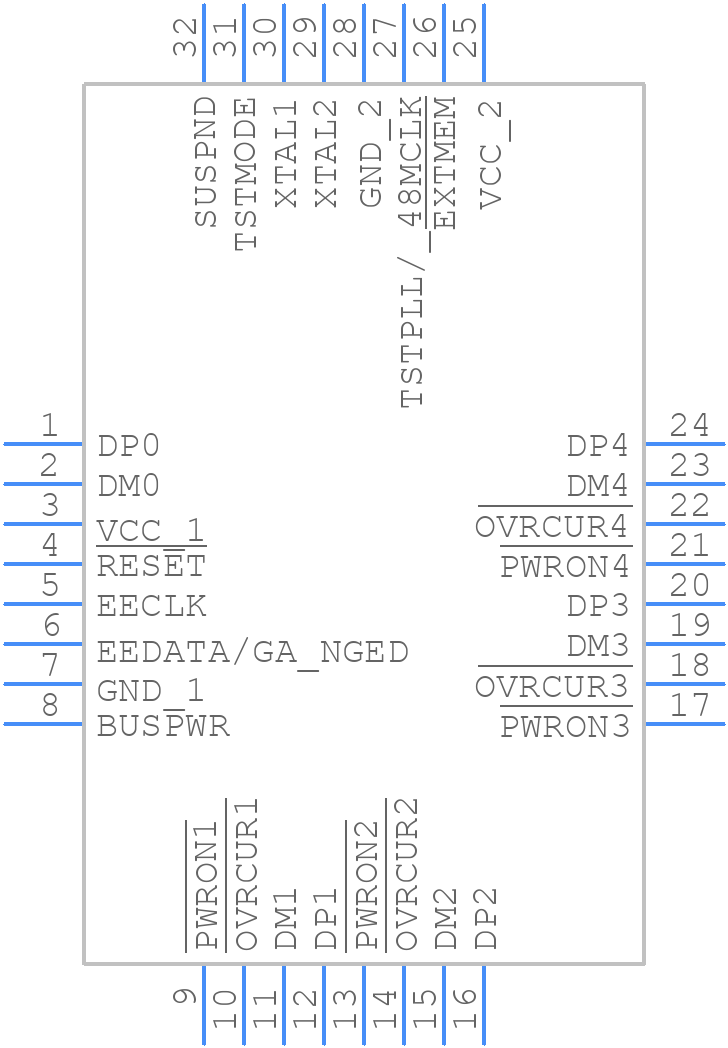

Use the download button to access the TUSB2046BVFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Bus Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
