Texas Instruments provides a recommended PCB layout in the TUSB2046BVFG4 datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure signal integrity and impedance matching, it's crucial to follow the USB 2.0 signal integrity guidelines. This includes using a 90-ohm differential impedance for the USB data lines, using a common mode filter, and minimizing the length of the USB traces. Additionally, using a signal integrity analysis tool can help optimize the design.
The TUSB2046BVFG4 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. It's essential to ensure good thermal conductivity between the device and the PCB. A thermal analysis should be performed to ensure the device operates within its recommended temperature range.
The TUSB2046BVFG4 has several power-saving features, including a low-power mode and a suspend mode. To configure the device for low-power operation, refer to the datasheet for specific register settings and configuration options. Additionally, consider using a power management IC to optimize power consumption.
The TUSB2046BVFG4 has built-in ESD protection, but it's still essential to follow proper ESD handling and protection procedures during manufacturing and assembly. This includes using ESD-safe materials, grounding straps, and following proper handling techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB2046BVFG4 Overview

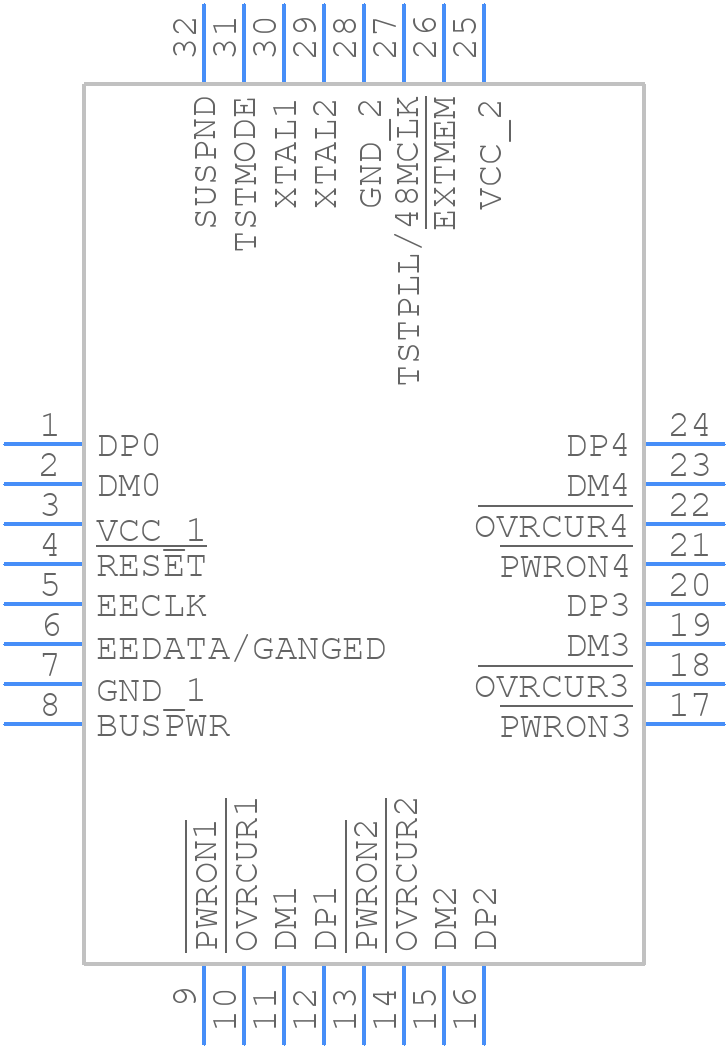

Use the download button to access the TUSB2046BVFG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Bus Controllers
