TUSB213IRGYT - Texas Instruments

Description: TEXAS INSTRUMENTS - TUSB213IRGYT - USB SIGNAL CONDITIONER, VQFN-14

Download TUSB213IRGYT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

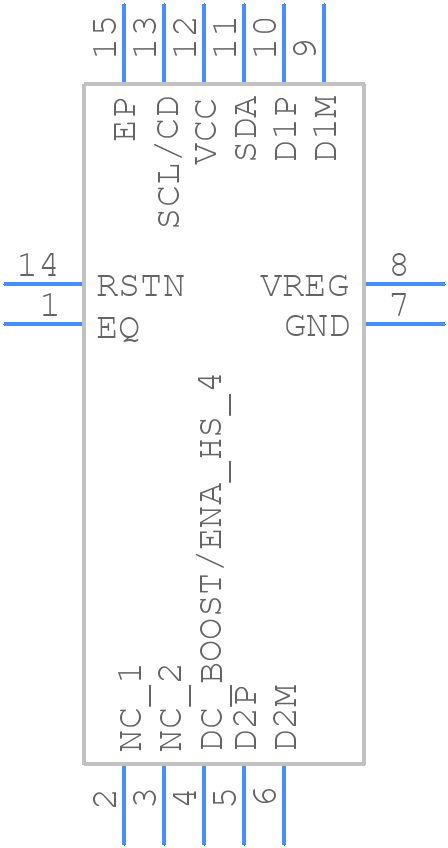

TUSB213IRGYT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB213IRGYT - Texas Instruments PCB footprint - Other - Other - RGY(S-PVQFN-N14)
click to zoom
3D Models
TUSB213IRGYT - Texas Instruments - 3D model - Other - RGY(S-PVQFN-N14)
click to zoom

TUSB213IRGYT Details

  • Manufacturer Part Number:

    TUSB213IRGYT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-09-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    USB SIGNAL CONDITIONER

  • JESD-30 Code:

    S-PQCC-N14

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TUSB213IRGYT Frequently Asked Questions (FAQs)

  • The TUSB213IRGYT supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1.5 meters (5 feet) for USB 3.0, assuming a good quality cable with minimal signal attenuation.
  • To ensure signal integrity, use a good quality cable, keep the signal traces short and well-shielded, and follow proper PCB layout guidelines. Additionally, use a common mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
  • The TUSB213IRGYT has a typical power consumption of 150 mA during active mode and 10 μA during suspend mode. However, the actual power consumption may vary depending on the specific application and operating conditions.
  • Yes, the TUSB213IRGYT is backward compatible with USB 1.1 devices. However, the data transfer rate will be limited to 1.5 Mbps, which is the maximum speed supported by USB 1.1.
  • The TUSB213IRGYT has built-in hot-swapping capabilities. When a device is connected or disconnected, the TUSB213IRGYT will automatically detect the change and adjust its operation accordingly. However, it's still important to follow proper hot-swapping guidelines to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB213IRGYT Overview

Use the download button to access the TUSB213IRGYT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
