TUSB213RGYR - Texas Instruments

Description: USB 2.0 High Speed Signal Conditioner

Download TUSB213RGYR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

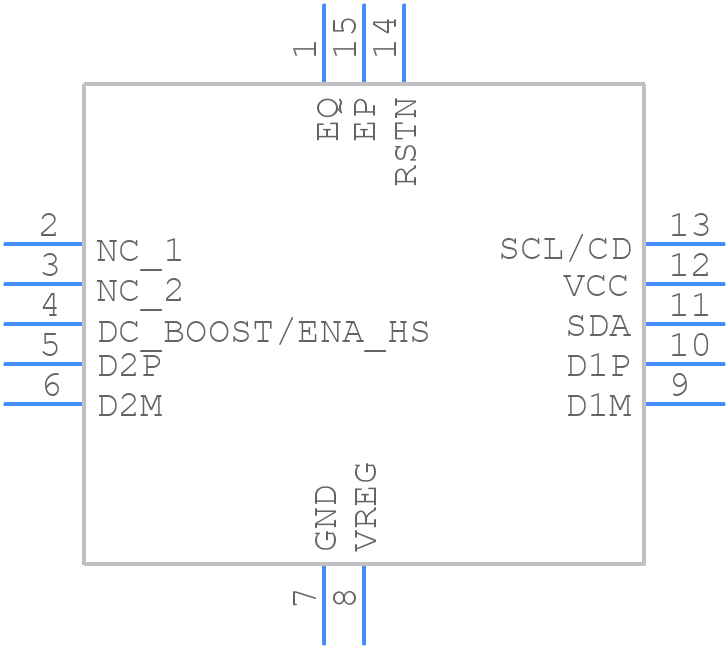

Symbol
TUSB213RGYR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB213RGYR - Texas Instruments PCB footprint - Other - Other - RGY0014B
click to zoom
3D Models
TUSB213RGYR - Texas Instruments - 3D model - Other - RGY0014B
click to zoom

TUSB213RGYR Details

  • Manufacturer Part Number:

    TUSB213RGYR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-09-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    USB SIGNAL CONDITIONER

  • JESD-30 Code:

    S-PQCC-N14

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TUSB213RGYR Frequently Asked Questions (FAQs)

  • The TUSB213RGYR supports cable lengths up to 3 meters, but this can vary depending on the specific application and cable quality.
  • To ensure signal integrity, use high-quality cables, keep the signal traces short and well-shielded, and follow proper PCB layout practices. Additionally, use the recommended termination resistors and capacitors to minimize signal reflections and ringing.
  • Yes, the TUSB213RGYR is backward compatible with USB 3.0 and USB 3.2 Gen 2 hosts, but it will operate at the slower USB 2.0 speed.
  • The TUSB213RGYR has an internal voltage regulator, but it's recommended to use an external power supply to ensure reliable operation. Follow the recommended power-up and power-down sequences to prevent damage to the device.
  • Follow the recommended layout and routing guidelines in the datasheet, including keeping the signal traces short and away from noise sources, using a solid ground plane, and minimizing vias and layer changes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB213RGYR Overview

Use the download button to access the TUSB213RGYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
