Texas Instruments provides a recommended PCB layout in the TUSB217ARWBRQ1 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and EMI.
To ensure reliable operation of TUSB217ARWBRQ1 in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, such as using a heat sink, thermal vias, and thermal pads. Additionally, TI recommends operating the device within its specified temperature range (-40°C to 85°C) and ensuring adequate airflow around the device.
TUSB217ARWBRQ1 has built-in ESD protection, but it is still recommended to follow proper ESD handling and protection procedures during manufacturing, testing, and assembly. TI recommends using ESD-sensitive devices handling procedures, such as using wrist straps, anti-static bags, and ESD mats.
Yes, TUSB217ARWBRQ1 is a USB 2.0 repeater, but it can be used in USB 3.0 applications as a signal conditioner. However, it is essential to ensure that the device is operated within its specified frequency range (up to 480 Mbps) and that the system design meets USB 3.0 specifications.
To troubleshoot issues with TUSB217ARWBRQ1, TI recommends using oscilloscopes, logic analyzers, and signal integrity analysis tools to identify signal degradation or data corruption. Additionally, it is essential to review the system design, PCB layout, and component selection to ensure compliance with USB specifications and TI's recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB217ARWBRQ1 Overview

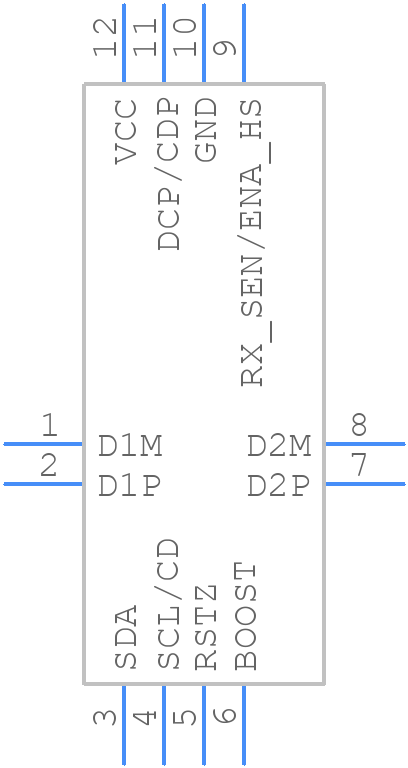

Use the download button to access the TUSB217ARWBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB2,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
