TUSB320RWBR - Texas Instruments

Description: USB Interface IC USB Type-C configuration channel logic and port control 12-X2QFN 0 to 70

Download TUSB320RWBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

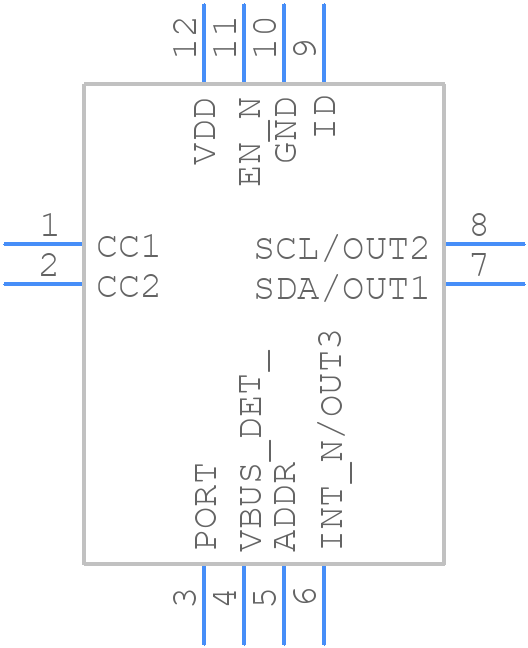

Symbol
TUSB320RWBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB320RWBR - Texas Instruments PCB footprint - Other - Other - RWB0012A_
click to zoom
3D Models
TUSB320RWBR - Texas Instruments - 3D model - Other - RWB0012A_
click to zoom

TUSB320RWBR Details

  • Manufacturer Part Number:

    TUSB320RWBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C, USB

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.063SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB320RWBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TUSB320RWBR datasheet, but it's also recommended to follow the USB 3.2 Gen 2 specification for PCB layout guidelines. Additionally, using a 4-layer PCB with a solid ground plane and a separate power plane can help reduce EMI and improve signal integrity.
  • The TUSB320RWBR is configured for USB 3.2 Gen 2 operation by default. However, you may need to configure the device's registers to enable Gen 2 mode. Refer to the TUSB320RWBR datasheet and the USB 3.2 Gen 2 specification for more information on configuring the device for Gen 2 operation.
  • The TUSB320RWBR supports cable lengths up to 3 meters for USB 3.2 Gen 2 operation. However, the actual cable length supported may vary depending on the specific application and the quality of the cable.
  • The TUSB320RWBR has built-in power management features, including a low-power mode and a suspend mode. You can implement power management by controlling the device's power modes using the device's registers and by using external power management ICs to control the power supply to the device.
  • The TUSB320RWBR has a maximum junction temperature of 125°C. To ensure reliable operation, it's recommended to keep the device's temperature below 85°C. You can use thermal pads, heat sinks, and other thermal management techniques to keep the device within its recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB320RWBR Overview

Use the download button to access the TUSB320RWBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3, or try a keyword search, such as Bus Controllers
