Part Image

TUSB3410IVF - Texas Instruments

Description: TUSB3410IVF, USB Controller 12Mbit/s USB 2.0, 3.3V, 32-Pin, LQFP

Download TUSB3410IVF Model

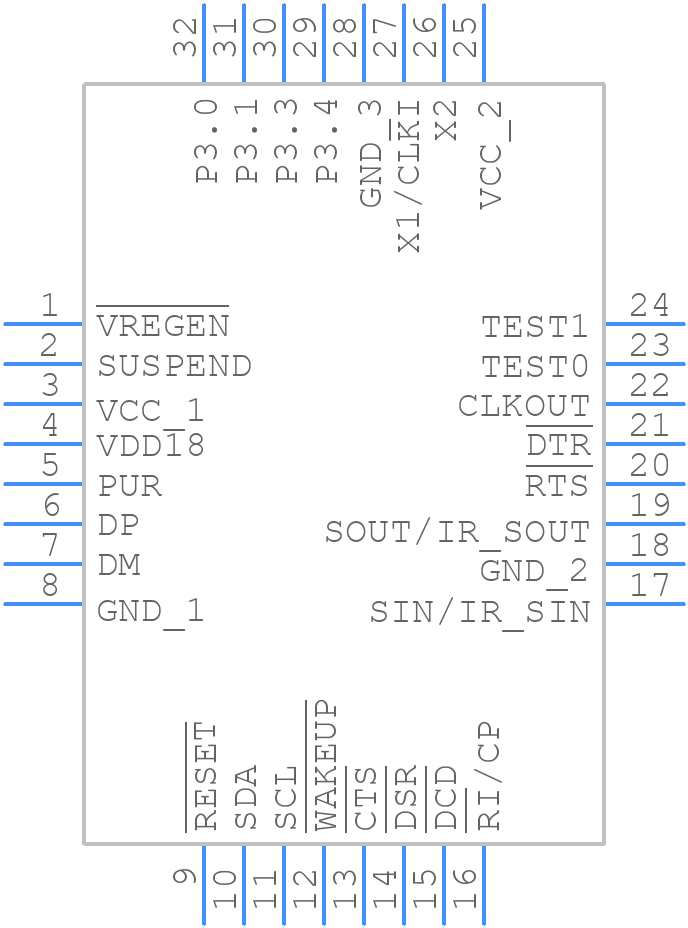

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TUSB3410IVF - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - VF0032A
click to zoom

3D Models

TUSB3410IVF - Texas Instruments  - 3D model - Quad Flat Packages - VF0032A
click to zoom

TUSB3410IVF Details

  • Manufacturer Part Number:

    TUSB3410IVF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    LQFP, QFP32,.35SQ,32

  • Pin Count:

    32

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.03

  • YTEOL:

    15

  • Bus Compatibility:

    I2C; UART

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    12 MBps

  • Drive Interface Standard:

    RS232; RS485

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    3.3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Subcategory:

    Bus Controllers

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB3410IVF Overview

Use the download button to access the TUSB3410IVF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3, or try a keyword search, such as Bus Controllers

Parts related to TUSB3410IVF

Showing 0 results

TUSB3410IVF Alternates

Showing results

Image Part Number Model
Part Image TUSB3410VFG4 Texas Instruments

UART, I2C & IrDA serial port to USB bridge 32-LQFP 0 to 70

Part Image TUSB3410IVFQ1 Texas Instruments

Automotive Catalog USB to Serial Port Controller 32-LQFP -40 to 85
