Texas Instruments provides a recommended PCB layout in the TUSB3410RHBR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range.
When using the TUSB3410RHBR in a system with multiple USB devices, it is essential to ensure that each device has a unique address and that the system is designed to handle the increased power consumption and potential electromagnetic interference (EMI) issues.
To troubleshoot issues with the TUSB3410RHBR, start by verifying the device's power supply, clock, and reset signals. Then, use tools like a logic analyzer or oscilloscope to debug the USB protocol and identify any errors or anomalies.
When using the TUSB3410RHBR with a custom USB connector or cable, ensure that the connector meets the USB specification, and the cable is properly shielded and terminated to minimize EMI and signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TUSB3410RHBR Overview

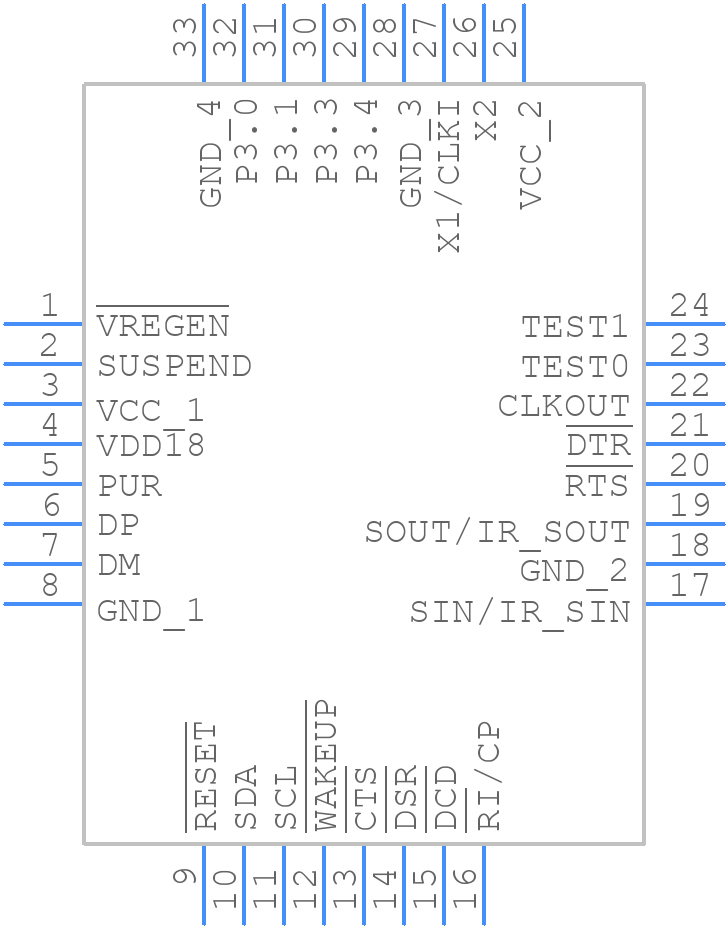

Use the download button to access the TUSB3410RHBR schematic symbol, PCB footprint, and 3D model.
