TUSB3410RHBT - Texas Instruments

Description: UART, I2C & IrDA serial port to USB bridge

Download TUSB3410RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

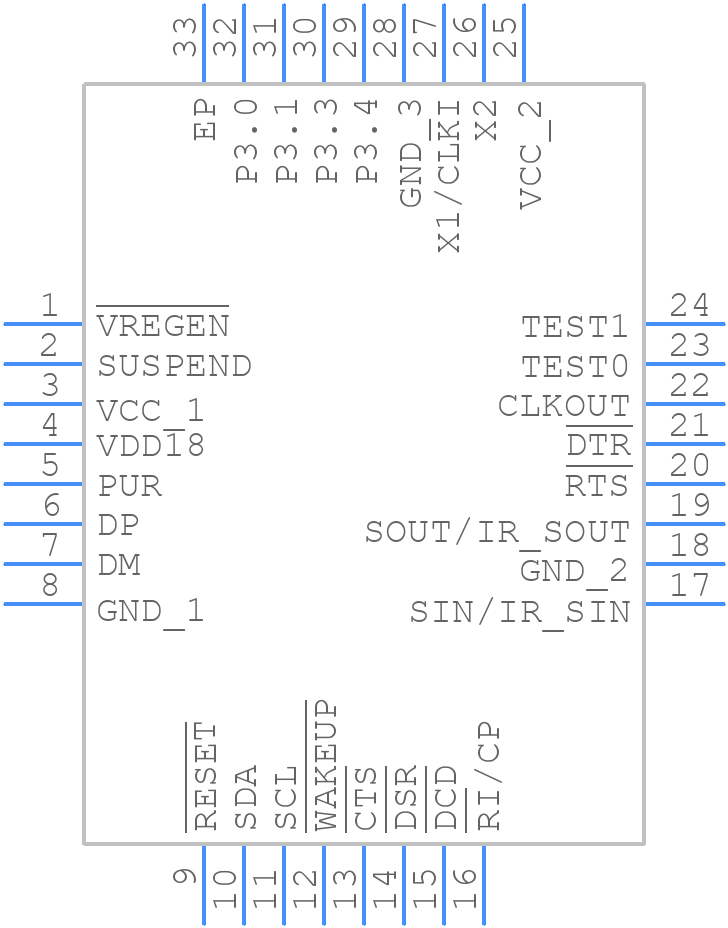

TUSB3410RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TUSB3410RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E VQFN - 1 mm max height
click to zoom
3D Models
TUSB3410RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E VQFN - 1 mm max height
click to zoom

TUSB3410RHBT Details

  • Manufacturer Part Number:

    TUSB3410RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C

  • Clock Frequency-Max:

    12 MHz

  • Data Transfer Rate-Max:

    1.5 MBps

  • Drive Interface Standard:

    RS232; RS485

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

TUSB3410RHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TUSB3410RHBT evaluation module documentation, which includes a 4-layer PCB stack-up and component placement guidelines to minimize EMI and ensure signal integrity.
  • To configure the TUSB3410RHBT for USB 3.2 Gen 2 operation, set the MODE pin to logic high and ensure the device is powered from a 3.3V supply. Additionally, the device must be configured using the I2C interface to select the desired speed mode.
  • The TUSB3410RHBT supports cable lengths up to 3 meters for USB 3.2 Gen 2 operation, assuming a high-quality cable with minimal signal attenuation. However, the actual cable length may vary depending on the specific application and cable characteristics.
  • The TUSB3410RHBT has a built-in power management feature that can be controlled through the I2C interface. The device can be configured to enter a low-power state when not in use, and wake-up on USB traffic or other events.
  • The TUSB3410RHBT has a maximum junction temperature of 125°C. To ensure reliable operation, the device should be mounted on a PCB with adequate thermal dissipation, and the ambient temperature should be kept below 85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TUSB3410RHBT Overview

Use the download button to access the TUSB3410RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TUSB3, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
